Repair Procedures: Removal: Subwoofer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

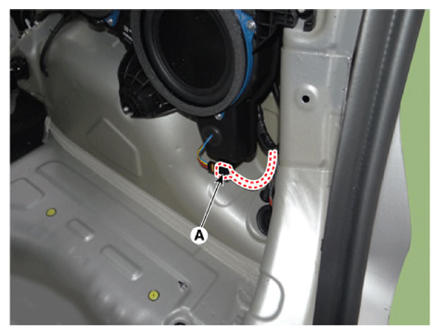

  3. Disconnect the connector (A).
    G13282345Courtesy of KIA MOTORS AMERICA, INC.

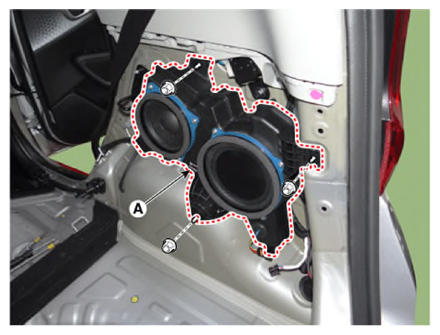

  4. Remove the subwoofer (A) by loosening the nuts.
G13282346Courtesy of KIA MOTORS AMERICA, INC.
