Midrange Speaker

  1. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

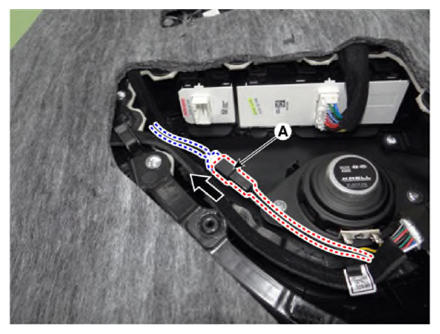

  2. After removing the connector (A) from the bracket by pushing it direction of arrow, disconnect the speaker connector.
    G13282343Courtesy of KIA MOTORS AMERICA, INC.

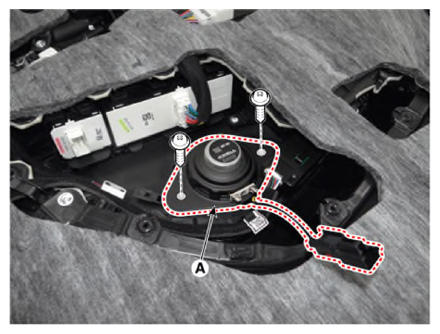

  3. Remove the midrange speaker (A) by loosening the screws.
G13282344Courtesy of KIA MOTORS AMERICA, INC.
