Front Door Speaker

  1. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

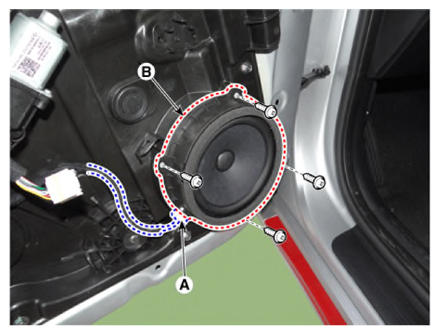

  2. Disconnect the connector (A) and then remove front door speaker (B) by loosening the screws.
G13282335Courtesy of KIA MOTORS AMERICA, INC.
