Crash Pad Center Speaker

  1. Disconnect the negative (-) battery terminal.

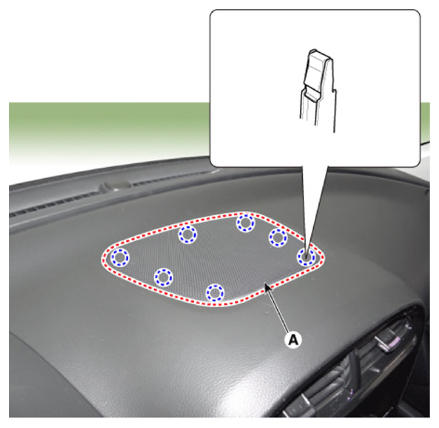

  2. Remove the center speaker grille (A).
    G13282340Courtesy of KIA MOTORS AMERICA, INC.

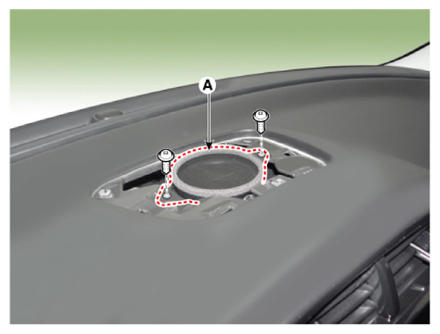

  3. Remove the center speaker (A) after loosening the screws.
    G13282341Courtesy of KIA MOTORS AMERICA, INC.

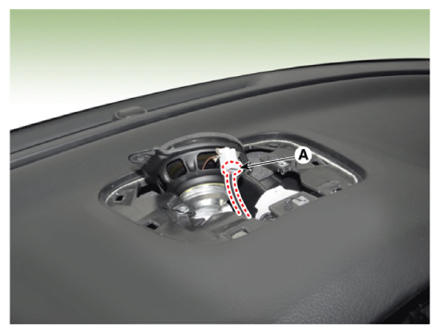

  4. Disconnect the center speaker connector (A).
G13282342Courtesy of KIA MOTORS AMERICA, INC.
