Repair Procedures: Inspection

  1. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

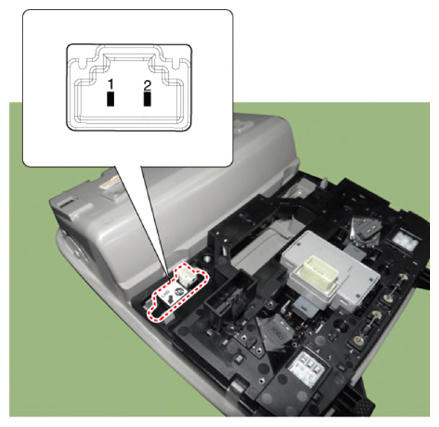

  2. Check the continuity of between terminals.
G13282379Courtesy of KIA MOTORS AMERICA, INC.
G13282380Courtesy of KIA MOTORS AMERICA, INC.
