Repair Procedures: Removal

NOTE: When praying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.

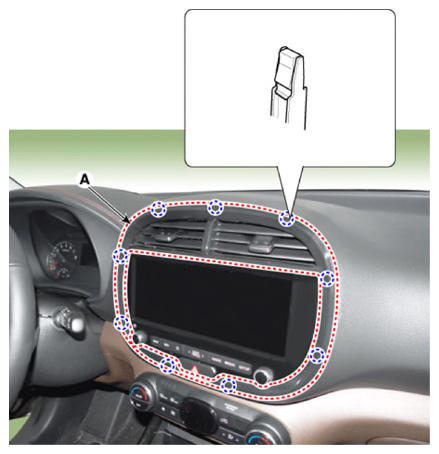

  2. Remove the center fascia panel (A).
    G13282329Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the audio/AVN head unit (A) after loosening the mounting screws.

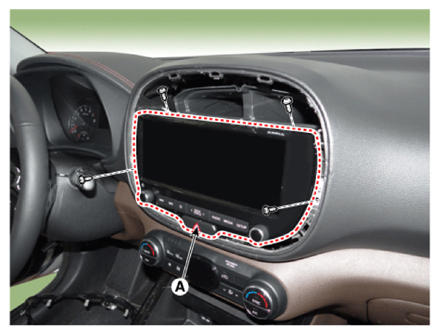

    [AVN]

    G13282330Courtesy of KIA MOTORS AMERICA, INC.

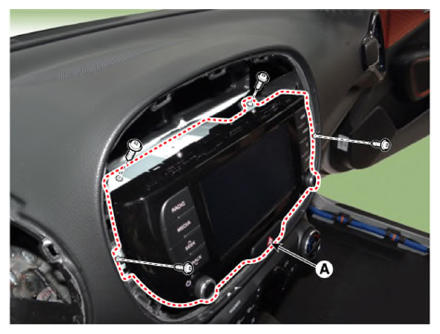

    [Audio]

    G13282331Courtesy of KIA MOTORS AMERICA, INC.

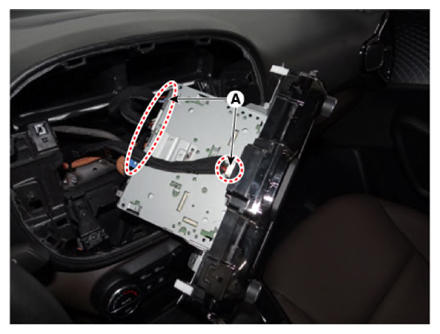

  4. Disconnect the all connectors (A) from the audio/AVN head unit.
G13282332Courtesy of KIA MOTORS AMERICA, INC.
