Roof Antenna: Notes

Disconnect the negative (-) battery terminal.
Remove the roof trim assembly.
(Refer to Body - "ROOF TRIM ASSEMBLY ")

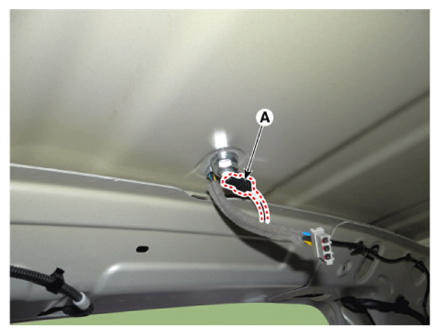

Disconnect the connector (A).
[Battery (+) connector type only]

Courtesy of KIA MOTORS AMERICA, INC.

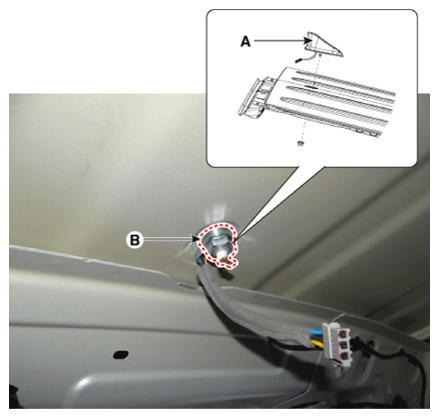

Remove the antenna (A) by loosening the nut (B).
Tightening torque:

7.8 - 14.7 N.m (0.8 - 1.5 kgf.m, 5.8 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
