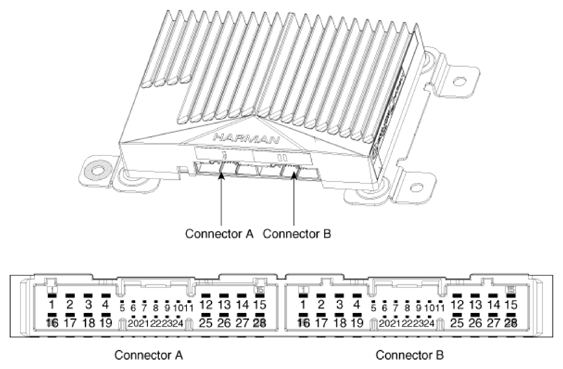

| 1 |
Battery (+) |
Sub woofer speaker 2 (+) |
| 2 |
Battery (+) |
Sub woofer speaker 1 (+) |
| 3 |
Battery (+) |
Right front door speaker (+) |
| 4 |
Battery (+) |
Left front door speaker (+) |
| 5 |
- |
- |
| 6 |
MM-CAN (High) |
- |
| 7 |
MM-CAN (Low) |
- |
| 8 |
ACC |
- |
| 9 |
Amplifier navigation voice (+) |
- |
| 10 |
- |
- |
| 11 |
- |
- |
| 12 |
Right tweeter speaker (+) |
Right midrange speaker (+) |
| 13 |
Left tweeter speaker (+) |
Left midrange speaker (+) |
| 14 |
Front center speaker (+) |
Right rear door speaker (+) |
| 15 |
- |
Left rear door speaker (+) |
| 16 |
Ground |
Sub woofer speaker 2 (-) |
| 17 |
Ground |
Sub woofer speaker 1 (-) |
| 18 |
Ground |
Right front door speaker (-) |
| 19 |
Ground |
Left front door speaker (-) |
| 20 |
Amplifier SPDIF (High) |
- |
| 21 |
Amplifier SPDIF (Low) |
- |
| 22 |
Amplifier SPDIF (Ground) |
- |
| 23 |
Amplifier navigation voice (-) |
- |
| 24 |
- |
- |
| 25 |
Right tweeter speaker (-) |
Right midrange speaker (-) |
| 26 |
Left tweeter speaker (-) |
Left midrange speaker (-) |
| 27 |
Front center speaker (-) |
Right rear door speaker (-) |
| 28 |
- |
Left rear door speaker (-) |
