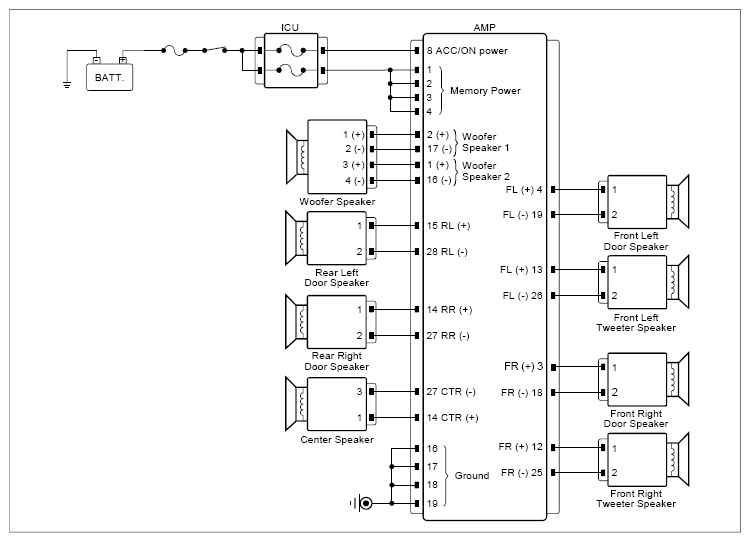

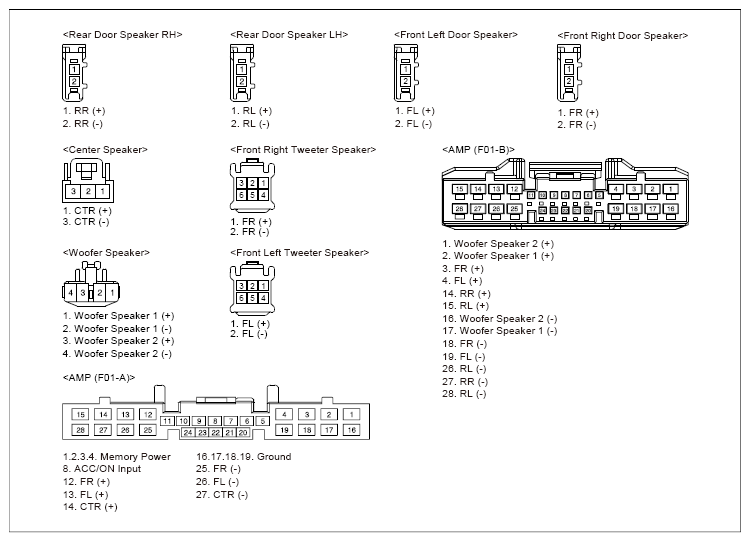

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector (s) from the concerned component.	Subwoofer speaker2 connector	3(+)	AMP connector	1 (+)	Approx. below 1Ω
	Subwoofer speaker2 connector	4(-)	AMP connector	16(-)	Approx. below 1Ω

Good

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
