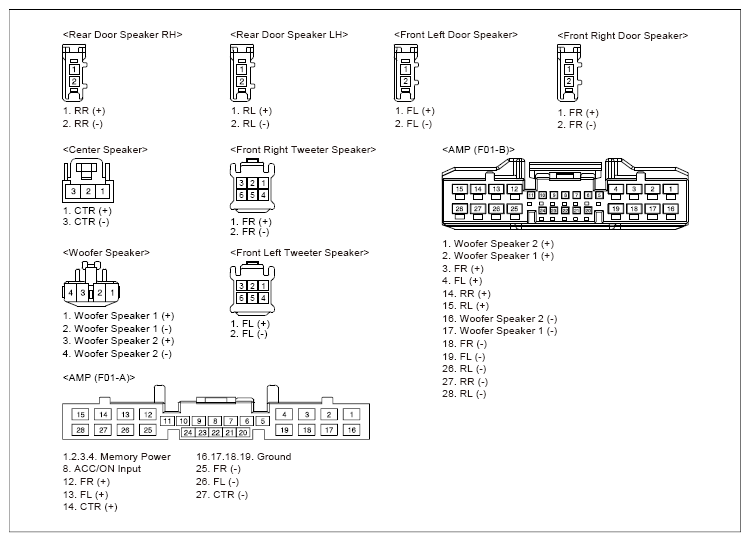

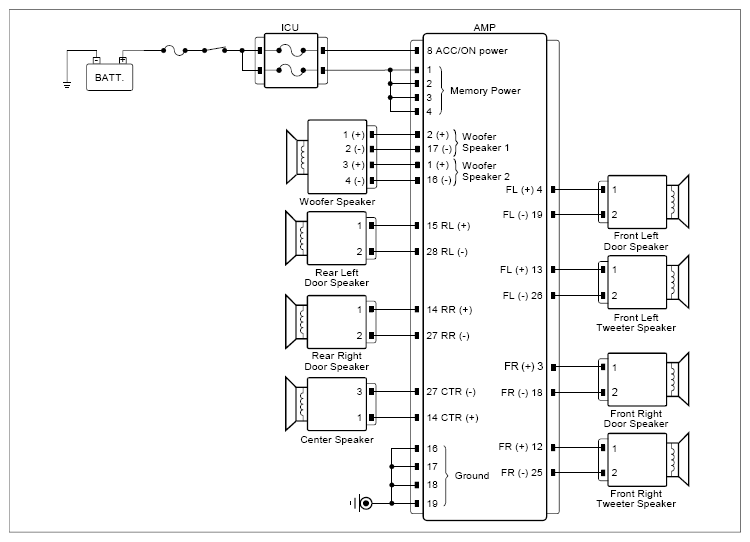

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector (s) from the concerned component.	Front left tweeter speaker connector	1 (FL+)	AMP connector	13 (FL+)	Approx. below 1Ω
	Front left tweeter speaker connector	2 (FL-)	AMP connector	26 (FL-)	Approx. below 1Ω

Good

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
