Circuit Inspection

G13285230

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component. Ignition "ON".	AMP connector	6 (M-CAN high)	Chassis ground	-	Fig.1
	AMP connector	7 (M-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector (s) from the concerned component.	AMP connector	6 (M-CAN high)	Chassis ground	-	∞ (infinity)Ω
	AMP connector	7 (M-CAN low)	Chassis ground	-	∞ (infinity)Ω
	AMP connector	6 (M-CAN high)	ICU connector	7 (M-CAN high)	Approx. below 1Ω
	AMP connector	7 (M-CAN low)	ICU connector	8 (M-CAN low)	Approx. below 1Ω

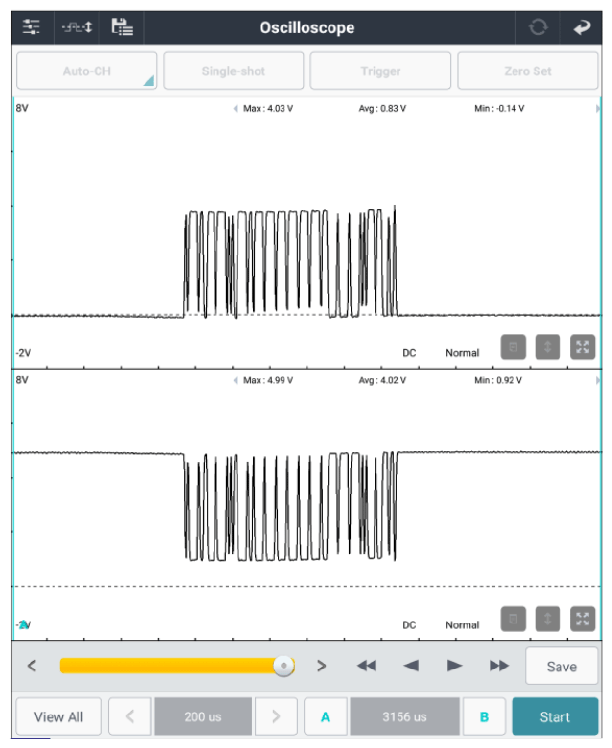

G13285231

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Repair open or short in CAN BUS line and go to "Verification of Repair " procedure.
