Smart Cruise Control (SCC)

  1. Operation specification
    Item Specification
    Max/Min speed for setting speed 30 - 160 km/h (20 - 100 mile/h)
    Max/Min speed for control 10 - 170 km/h (5 - 110 mile/h)

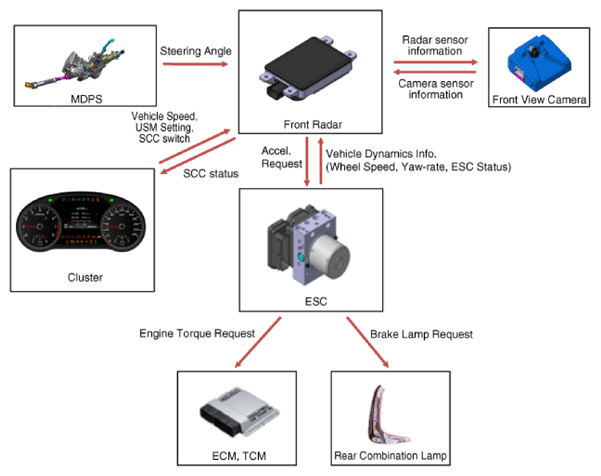

  2. System components
    G13283153Courtesy of KIA MOTORS AMERICA, INC.

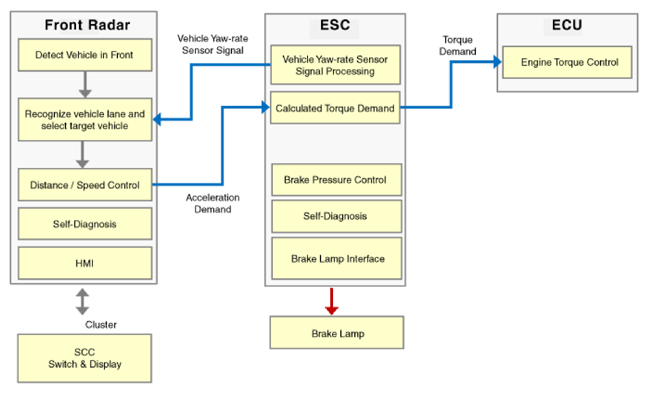

  3. System block diagram
    G13283154Courtesy of KIA MOTORS AMERICA, INC.
