Forward Collision-avoidance Assist (FCA)

  1. Operation specification
    Item Specification
    Target Sensor fusion (Front view camera unit + Front radar unit)
    Car Pedestrian, Cyclist
    Operation speed 1st 8 - 160 km/h (5 - 100 mile/h) 8 - 90 km/h (5 - 55 mile/h)
    2nd 8 - 160 km/h (5 - 100 mile/h) 8 - 70 km/h (5 - 45 mile/h)
    3rd 8 - 90 km/h (5 - 55 mile/h) 8 - 70 km/h (5 - 45 mile/h)
    Warning level 1st Visible/Audible warning
    2nd Visible/Audible warning + Engine drag + Weak braking
    3rd Visible/Audible warning + Engine drag + Full braking
    Alarm sensitivity (User setting menu) Normal - Late

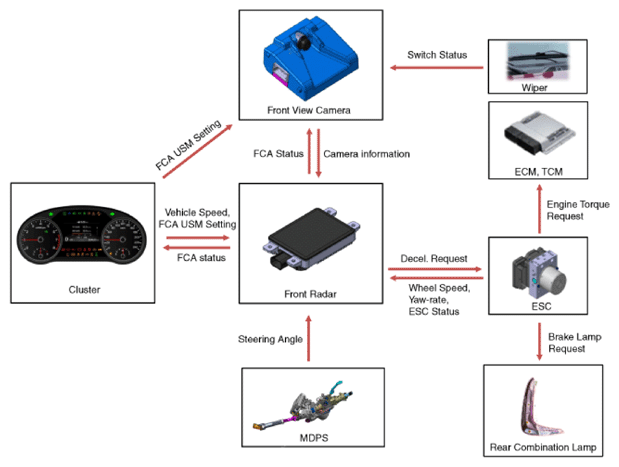

  2. System components
    G13283150Courtesy of KIA MOTORS AMERICA, INC.

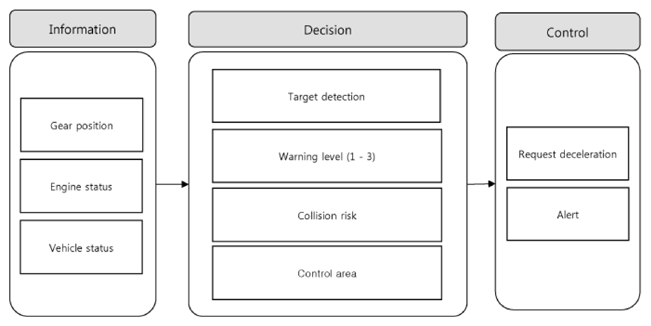

  3. System block diagram
    G13283151Courtesy of KIA MOTORS AMERICA, INC.

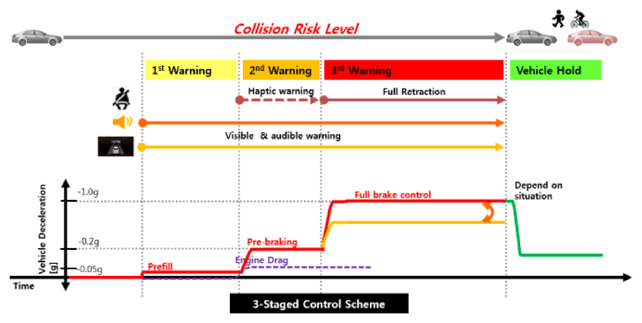

  4. System operation
    G13283152Courtesy of KIA MOTORS AMERICA, INC.
