Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 6
G13285504Courtesy of KIA MOTORS AMERICA, INC.

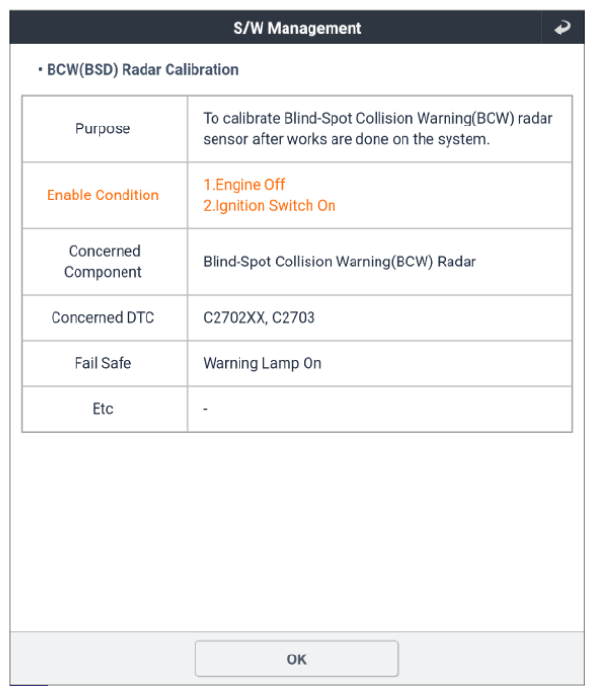

G13285505Courtesy of KIA MOTORS AMERICA, INC.

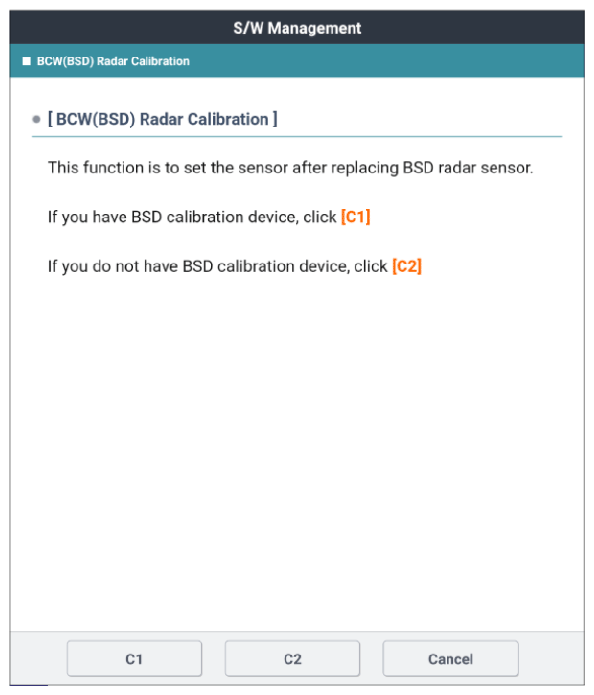

G13285506Courtesy of KIA MOTORS AMERICA, INC.

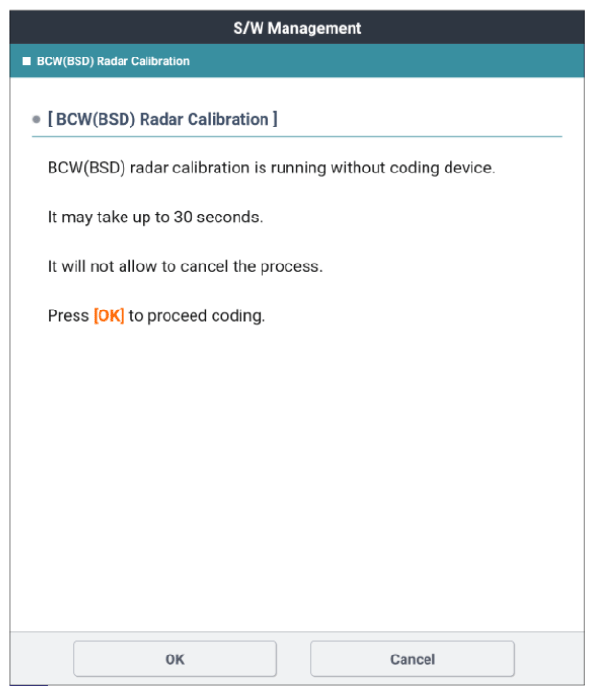

G13285507Courtesy of KIA MOTORS AMERICA, INC.
G13285508Courtesy of KIA MOTORS AMERICA, INC.

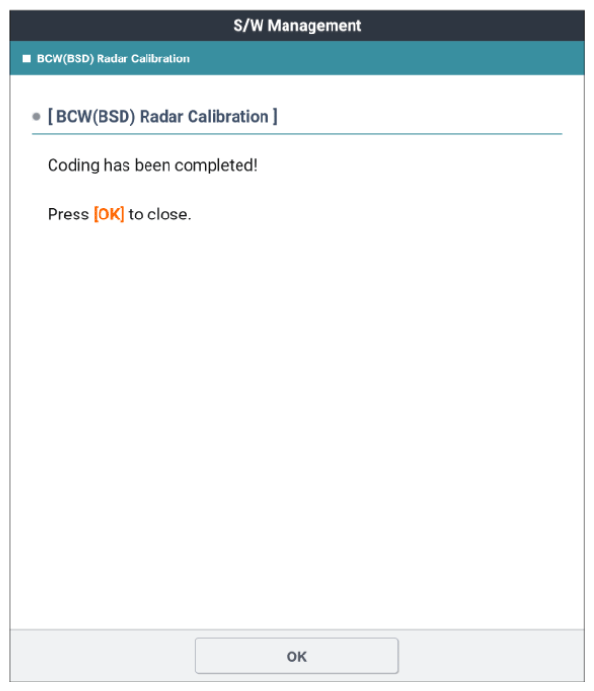

G13285509Courtesy of KIA MOTORS AMERICA, INC.
