Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW Radar Calibration" under "Vehicle S/W Management".
 Fig.1 to 6
G13285495Courtesy of KIA MOTORS AMERICA, INC.

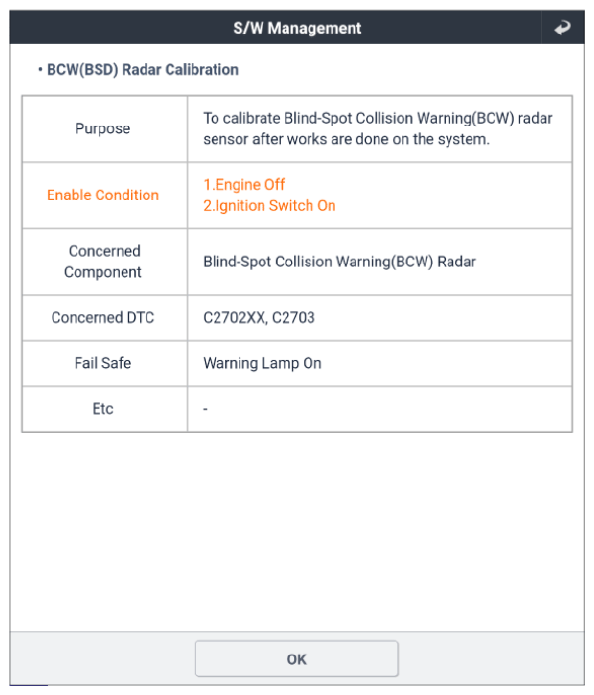

G13285496Courtesy of KIA MOTORS AMERICA, INC.

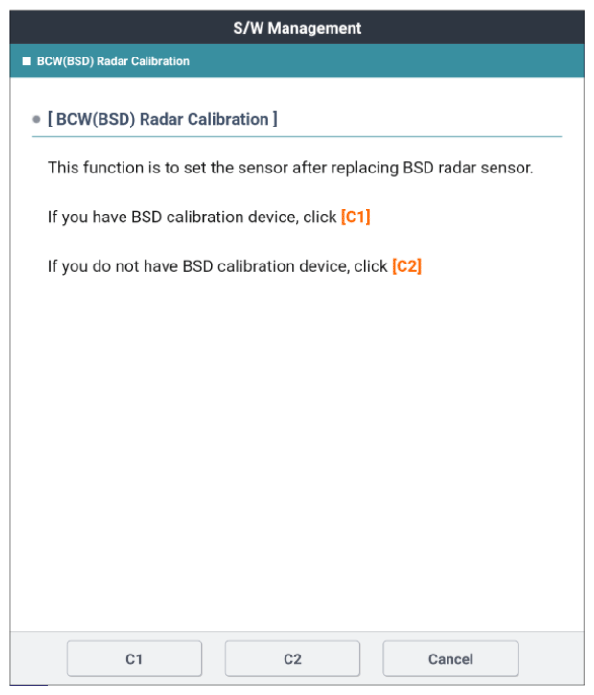

G13285497Courtesy of KIA MOTORS AMERICA, INC.

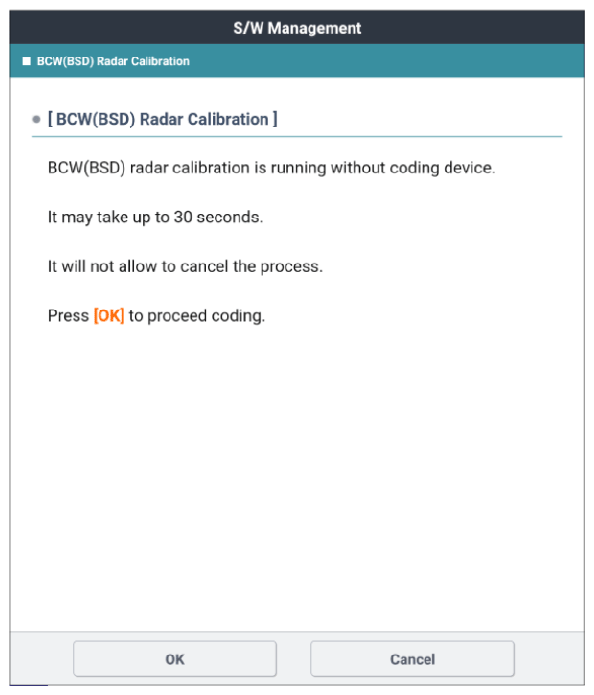

G13285498Courtesy of KIA MOTORS AMERICA, INC.
G13285499Courtesy of KIA MOTORS AMERICA, INC.

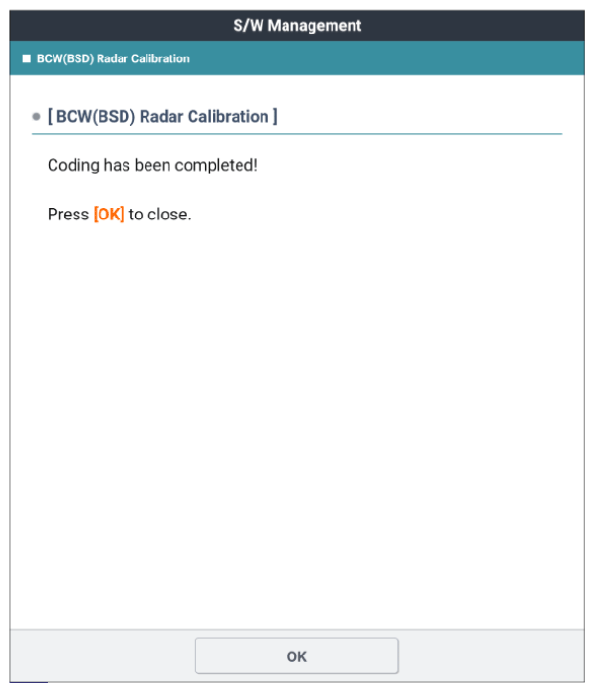

G13285500Courtesy of KIA MOTORS AMERICA, INC.
