Inspection Procedure

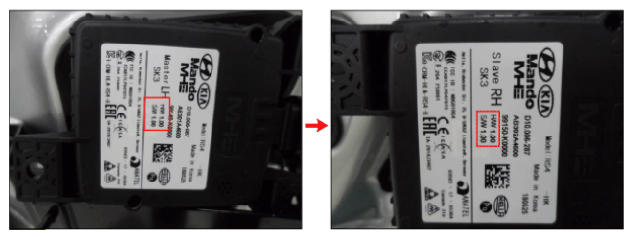

1. Check for software version on the BCW radar label. (reference-Fig.1)

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the BCW and go to "Verification of Repair " procedure.
• In case of BCW is replaced, "BCW Radar Calibration" must be performed.

No Good

• Repair as necessary and then go to "Verification of Repair " procedure.
