Circuit Inspection

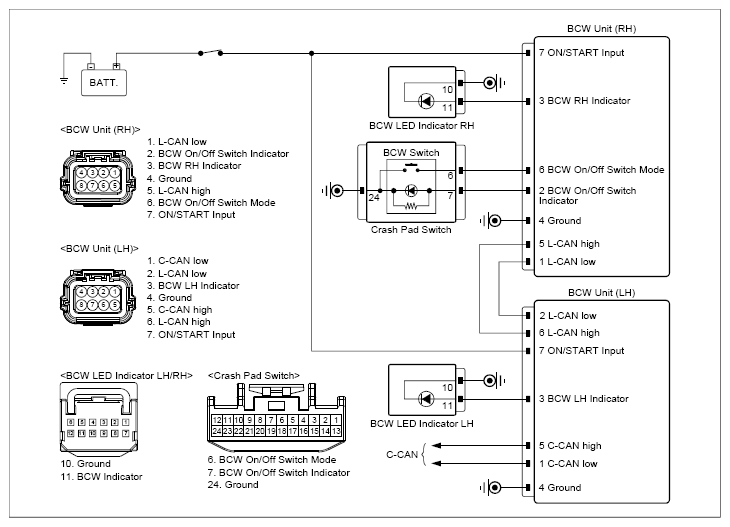

G13285464

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the battery. Disconnect the electrical connector(s) from the concerned component.	Crash pad switch	7 (LED signal)	BCW radar (RH)	2 (LED signal)	Approx. below 1Ω
	Crash pad switch	7 (LED signal)	Chassis ground	-	Approx. 0V
	Crash pad switch	7 (LED signal)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
