Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. BCW radar calibration.
  2. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Select "Vehicle S/W Management" with KDS.
  3. Select "BCW(BSD) variant coding" under "Vehicle S/W Management".
 Fig.1 to 5
G13285457Courtesy of KIA MOTORS AMERICA, INC.

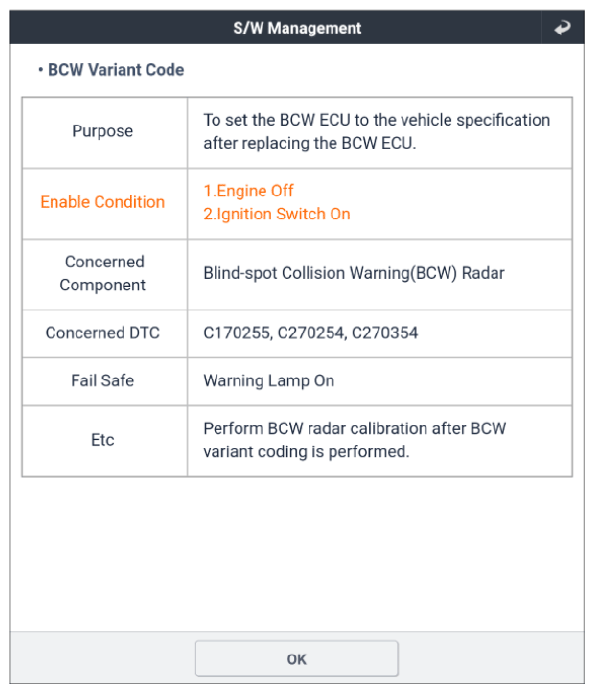

G13285458Courtesy of KIA MOTORS AMERICA, INC.

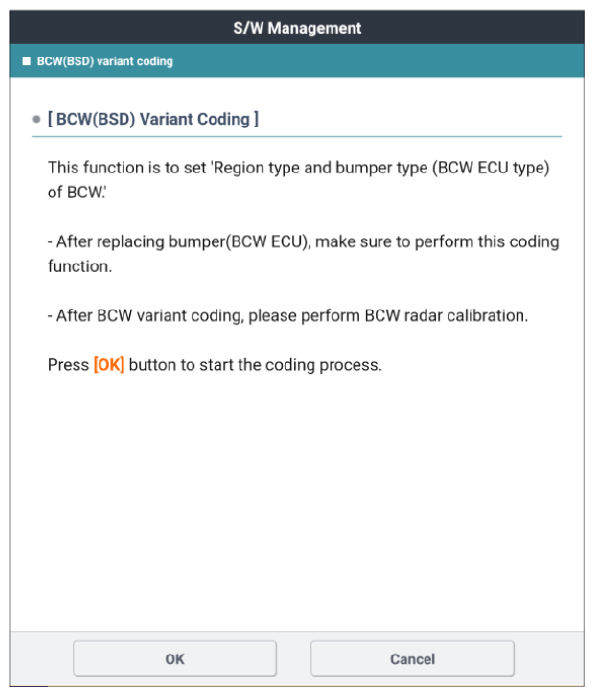

G13285459Courtesy of KIA MOTORS AMERICA, INC.

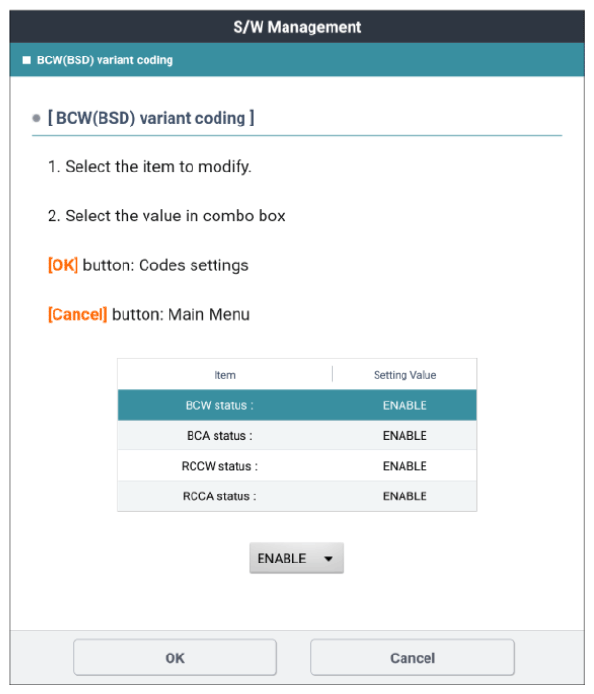

G13285460Courtesy of KIA MOTORS AMERICA, INC.

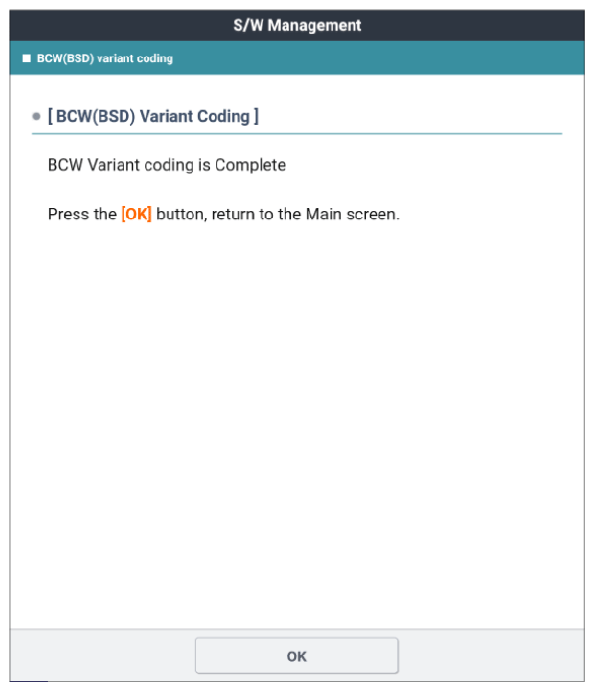

G13285461Courtesy of KIA MOTORS AMERICA, INC.
