Circuit Inspection

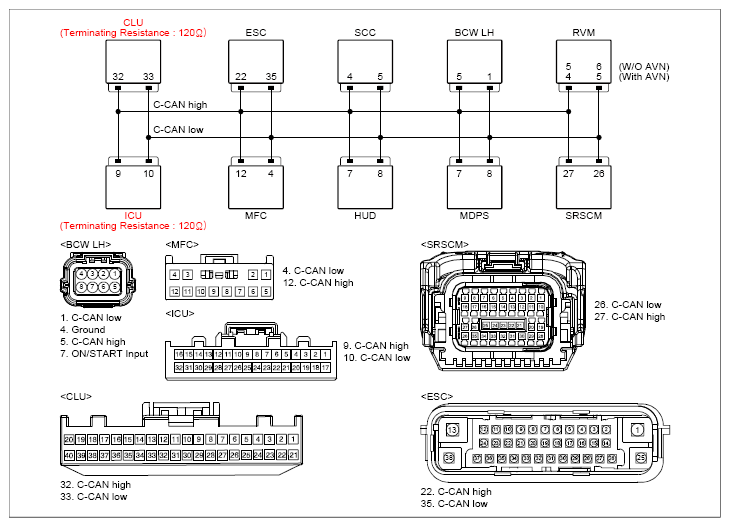

G13285424Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Connect the electrical connector(s) from the concerned component.
  2. Ignition "ON".

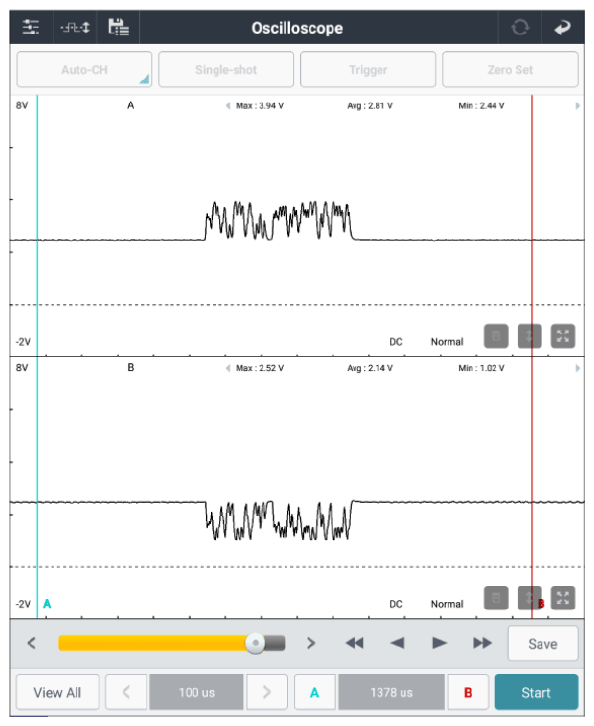

 ICU 9 (C-CAN high) Chassis ground - Fig.1
ICU 10 (C-CAN low) Chassis ground -
  1. Ignition "OFF".
  2. Disconnect the battery.
  3. Wait about four minutes.
  4. Disconnect the electrical connector(s) from the concerned component.
 BCW radar (LH) 5 (C-CAN high) BCW radar (LH) 1 (C-CAN low) Approx. 60Ω
G13285425Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
