Circuit Inspection

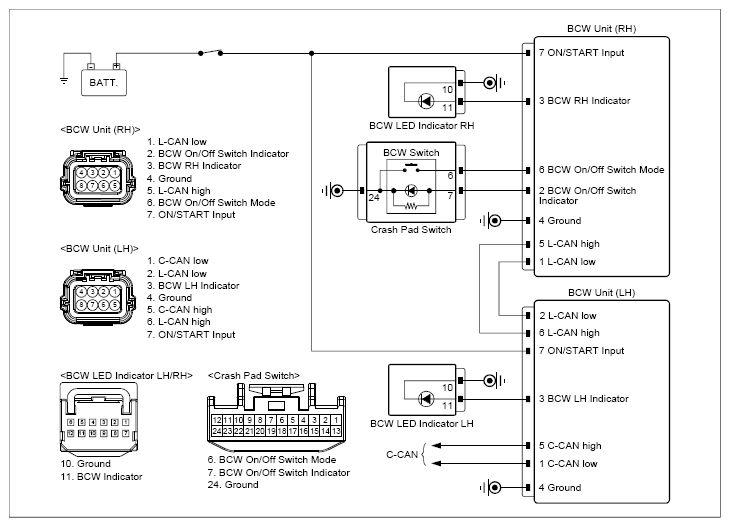

G13285395

Courtesy of KIA MOTORS AMERICA, INC.

BCW Switch Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Crash pad switch	6 (BCW switch)	Chassis ground	-	∞ (infinity)Ω
	Crash pad switch	6 (BCW switch)	BCW radar (RH)	6 (BCW switch)	Approx. below 1Ω

Good

Go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
