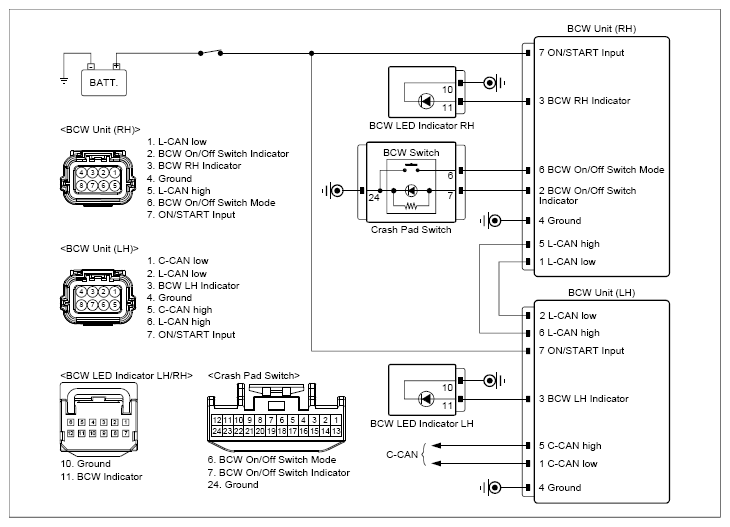

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
* C120B15 can be set. |
Right outside mirror | 11 (LED power) | Chassis ground | - | Approx. 5V |
|
Right outside mirror | 10 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair open or short in circuit and then go to "Verification of Repair " procedure.
