Circuit Inspection

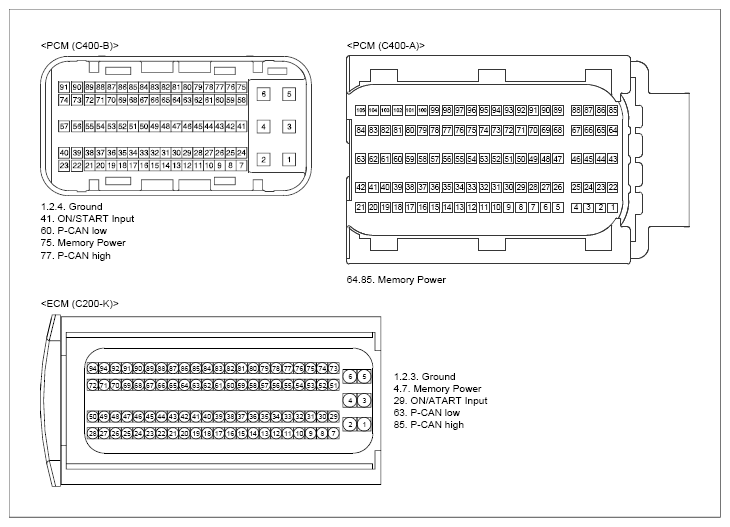

G13289247

Courtesy of KIA MOTORS AMERICA, INC.

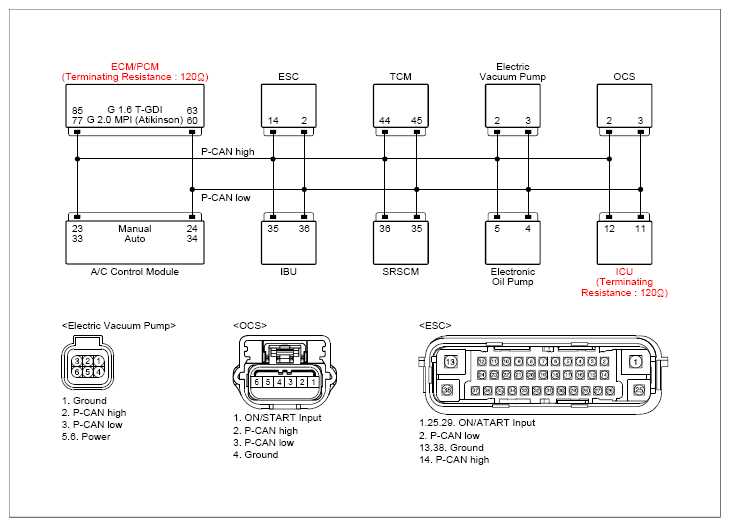

G13289248

Courtesy of KIA MOTORS AMERICA, INC.

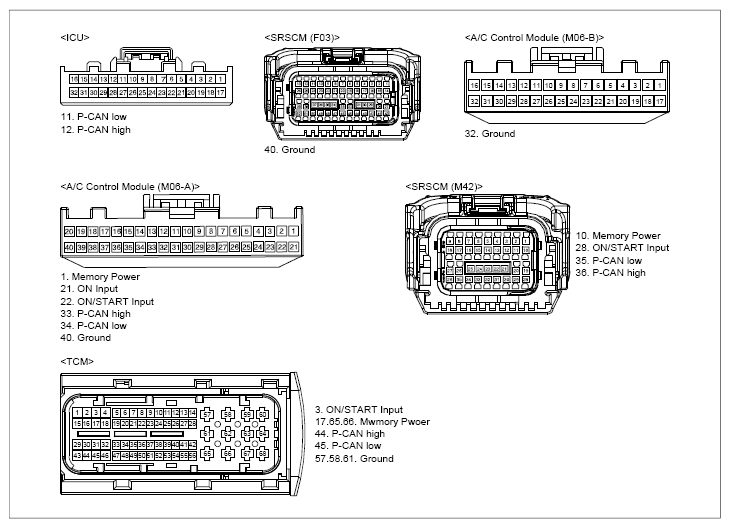

G13289249

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EVP	5, 6 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EVP	1 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "ON".	EVP	2 (P-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	EVP	3 (P-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU	12 (P-CAN high)	ICU	11 (P-CAN low)	Approx. 60Ω
	EVP	2 (P-CAN high)	EVP	3 (P-CAN low)	Approx. 60Ω
	ICU	12 (P-CAN high)	EVP	2 (P-CAN high)	Approx. below 1Ω
	ICU	11 (P-CAN low)	EVP	3 (P-CAN low)	Approx. below 1Ω

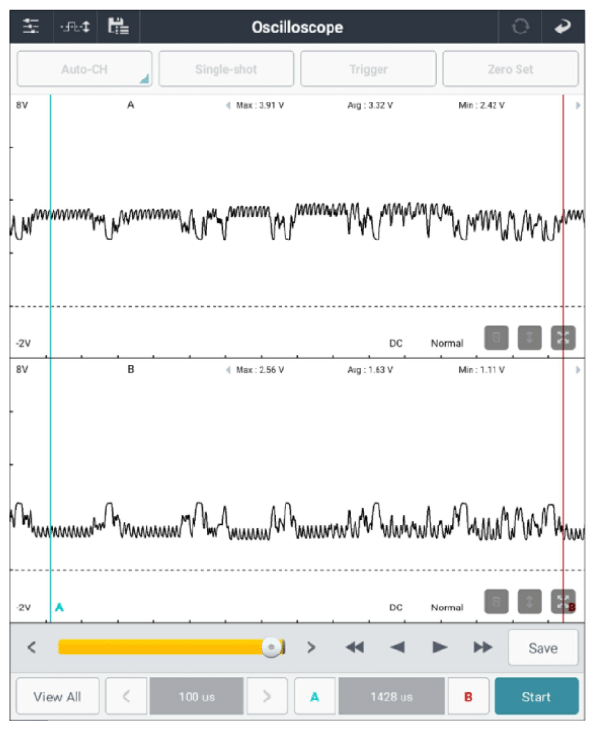

G13289250

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
