Circuit Inspection

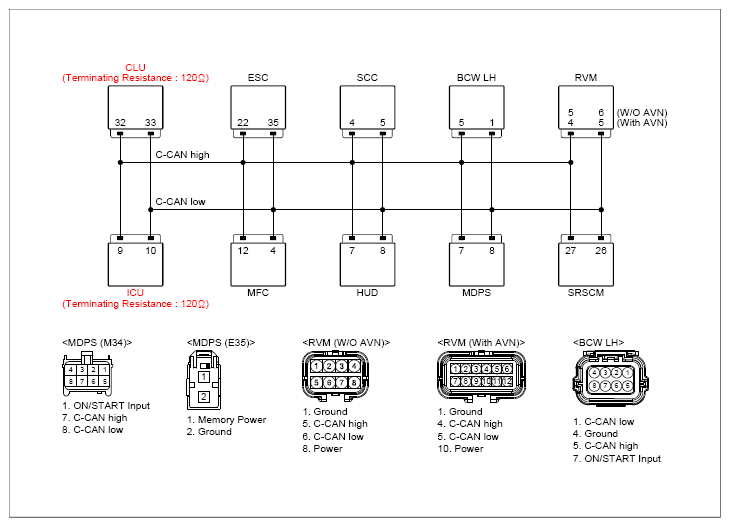

G13289242

Courtesy of KIA MOTORS AMERICA, INC.

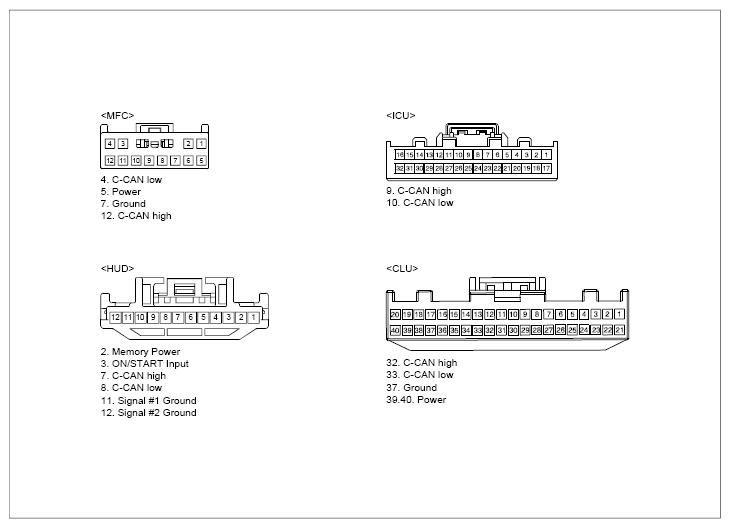

G13289243

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	BCW LH	7 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	BCW LH	4 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "ON".	BCW LH	5 (C-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	BCW LH	1 (C-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU	9 (C-CAN high)	ICU	10 (C-CAN low)	Approx. 60Ω
	BCW LH	5 (C-CAN high)	BCWLH	1 (C-CAN low)	Approx. 60Ω
	ICU	9 (C-CAN high)	BCWLH	5 (C-CAN high)	Approx. below 1Ω
	ICU	10 (C-CAN low)	BCWLH	1 (C-CAN low)	Approx. below 1Ω

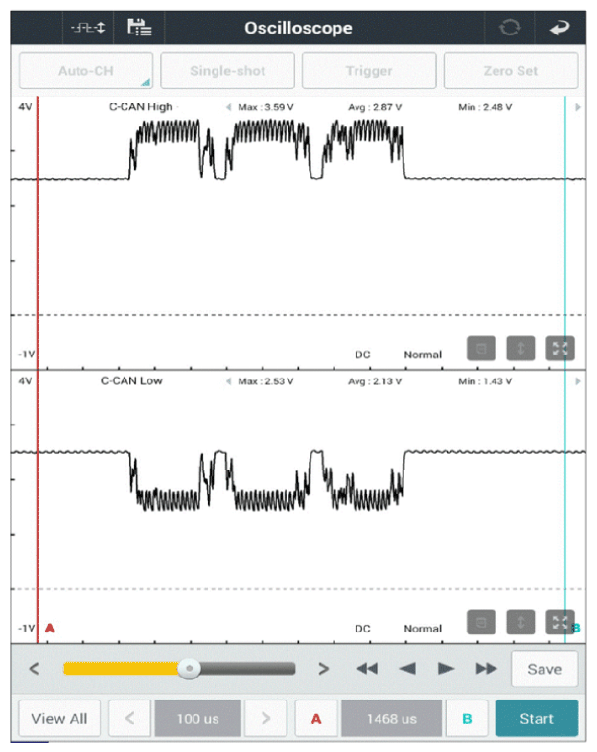

G13289244

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
