Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

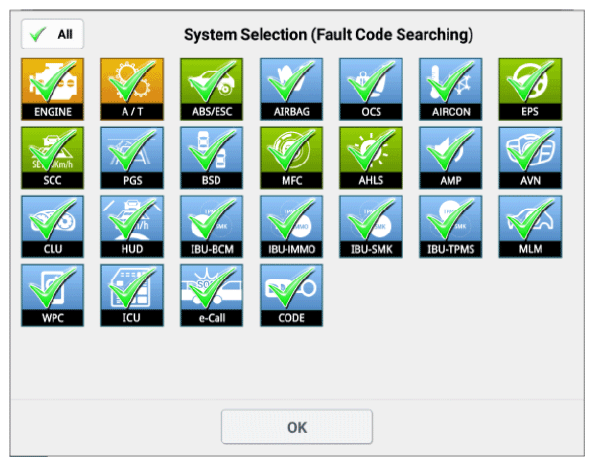

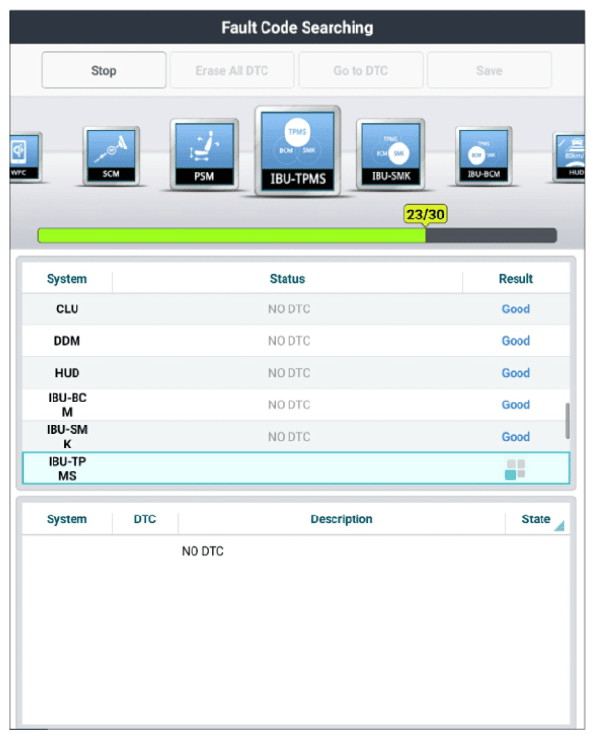

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Select correct vehicle model, year, and engine type with KDS. Select CAN related all system. (Fig.1) Select "Fault Code Searching". (Fig.2)	Fig.1 to 2

G13289190

Courtesy of KIA MOTORS AMERICA, INC.

G13289191

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

After repairing can related faults first, carefully re-do this troubleshooting guide steps.
If no problems were found, go to "Wiring Inspection " procedure.
