Circuit Inspection

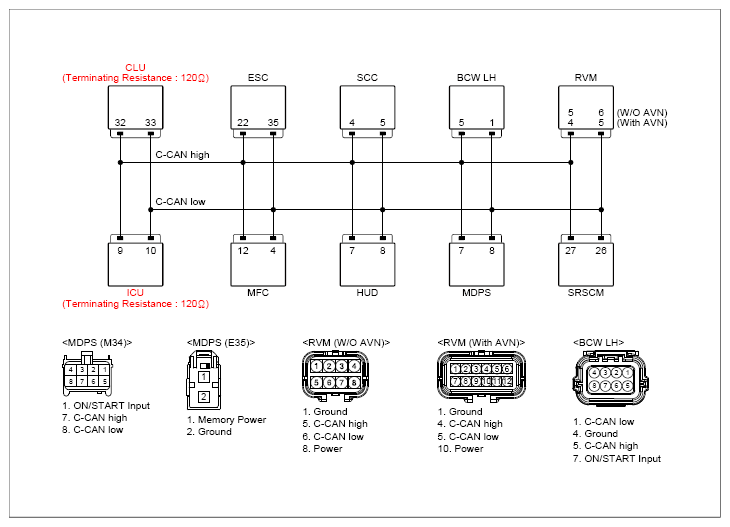

G13289182

Courtesy of KIA MOTORS AMERICA, INC.

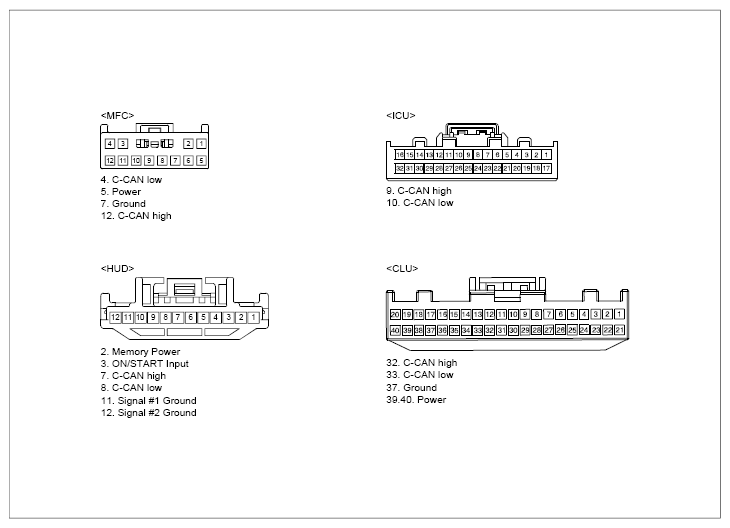

G13289183

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	RVM	8 (power) - Audio 10 (power) - AVN	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	RVM	1 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "ON".	RVM	5 (C-CAN high) - Audio 4 (C-CAN high) - AVN	Chassis ground	-	Fig.1
Ignition "ON".	RVM	6 (C-CAN low) - Audio 5 (C-CAN low) - AVN	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU	9 (C-CAN high)	ICU	10 (C-CAN low)	∞ (infinity)Ω
	RVM	5 (C-CAN high) - Audio 4 (C-CAN high) - AVN	RVM	6 (C-CAN low) - Audio 5 (C-CAN low) - AVN	∞ (infinity)Ω
	ICU	9 (C-CAN high)	RVM	5 (C-CAN high) - Audio 4 (C-CAN high) - AVN	Approx. below 1Ω
	ICU	10 (C-CAN low)	RVM	6 (C-CAN low) - Audio 5 (C-CAN low) - AVN	Approx. below 1Ω

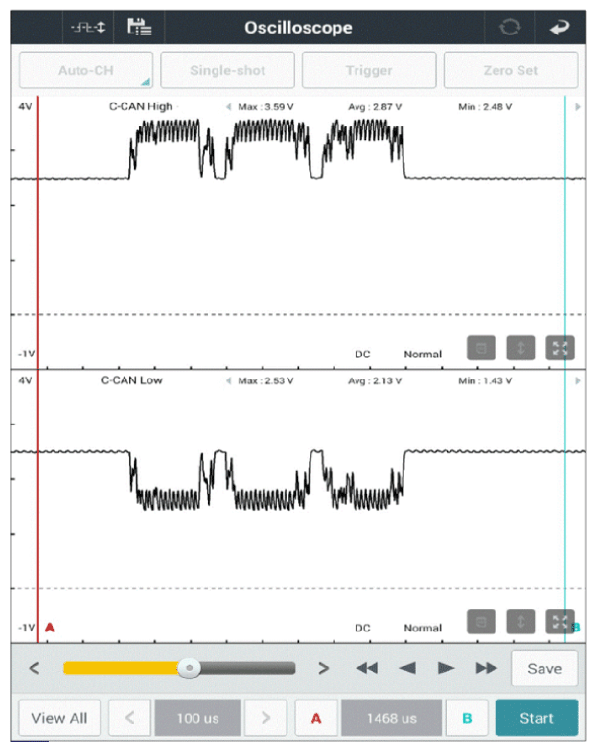

G13289184

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
