Circuit Inspection

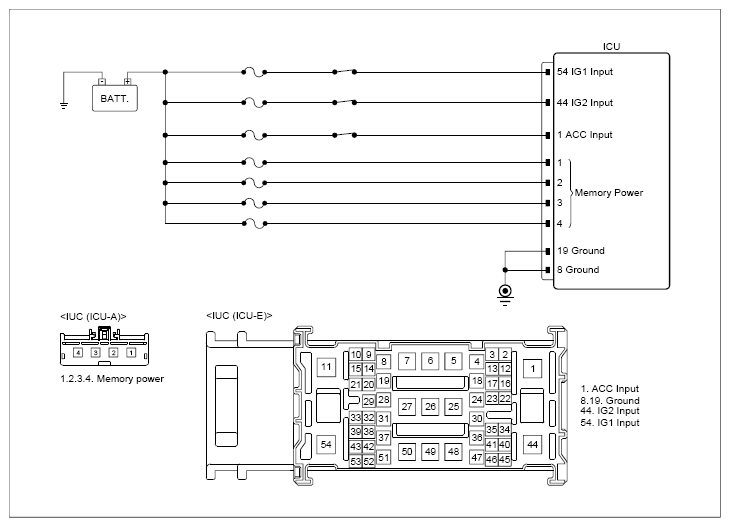

G13289014Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 ICU 1, 2, 3, 4 (Memory power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 ICU 8, 19 (ground) Chassis ground - Approx. below 1Ω

Good

No Good
