Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

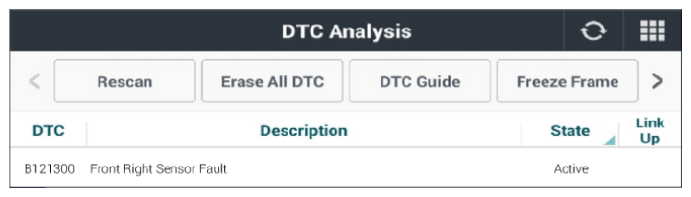

Fig. 1 |
Active Fault
- Go to "System Inspection " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in "IBU-BCM" or PDW sensor
- PDW front right sensor's connector or was repaired and "IBU-BCM" memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "Verification of Repair " procedure.
