Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

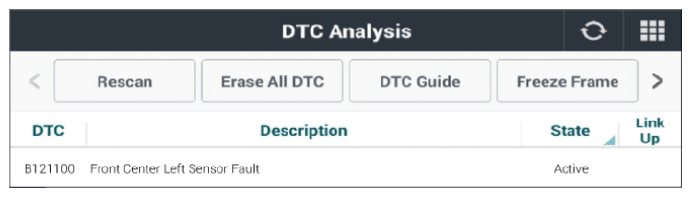

 Fig. 1
G13288392Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to "System Inspection " procedure.

History/Pending Fault

  1. Fault is intermittent caused by poor contact in "IBU-BCM" or PDW sensor
    • PDW front center left sensor's connector or was repaired and "IBU-BCM" memory was not cleared.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Repair or replace as necessary, go to "Verification of Repair " procedure.
