Circuit Inspection

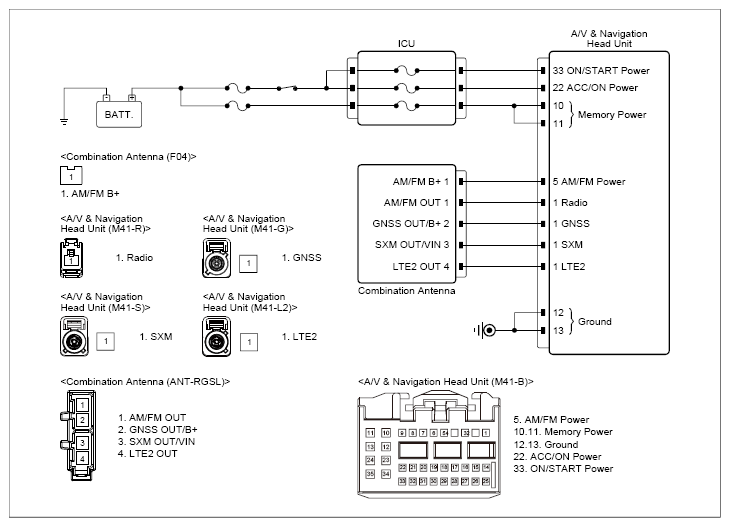

G13285335

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the battery(-) terminal cable from the battery. Disconnect the electrical connector(s) from the concerned component.	Combination antenna connector	3 (SXM out/vin)	A/V & navigation head unit connector	1 (SXM)	Approx. below 1Ω
	Combination antenna connector	1 (B+)	A/V & navigation head unit connector	5 (antenna)	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the A/V & navigation head unit and go to "Verification of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the combination antenna and go to "Verification of Repair " procedure.
