Repair Procedures: Removal

NOTE:
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative battery terminal.
  2. Remove the cluster assembly.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

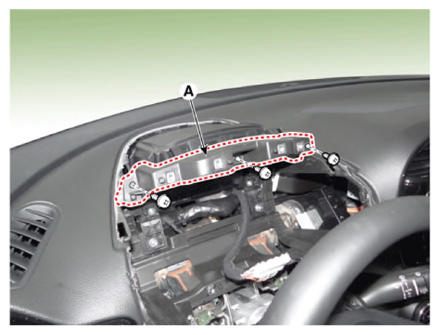

  3. Remove the cluster fascia support bracket (A) after loosening the mounting screws.
    G13282471Courtesy of KIA MOTORS AMERICA, INC.

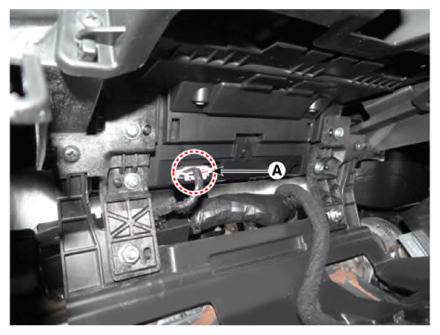

  4. Disconnect the connector (A) from the head up display unit.
    G13282472Courtesy of KIA MOTORS AMERICA, INC.

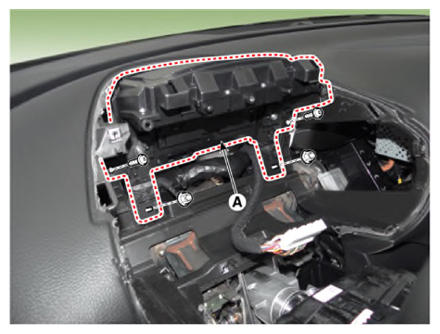

  5. Remove the head up display unit (A) after loosening the mounting screws and nuts.
G13282473Courtesy of KIA MOTORS AMERICA, INC.
