Rear Door Speaker

  1. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

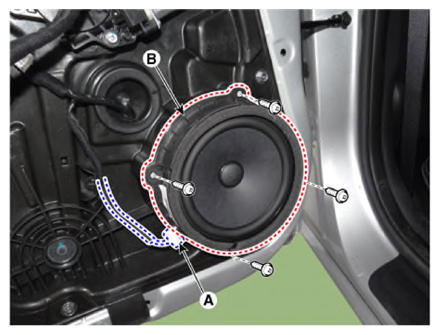

  2. Disconnect the connector (A) and then remove rear door speaker (B) by loosening the screws.
G13282336Courtesy of KIA MOTORS AMERICA, INC.
