LEMON Manuals
: Even more car manuals for everyone
Home
>>
Kia
>>
2020
>>
Soul GT Line Turbo
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Rear View Monitor (RVM)
>>
Troubleshooting
>>
Diagnosis Procedure Of Each Symptom
>>

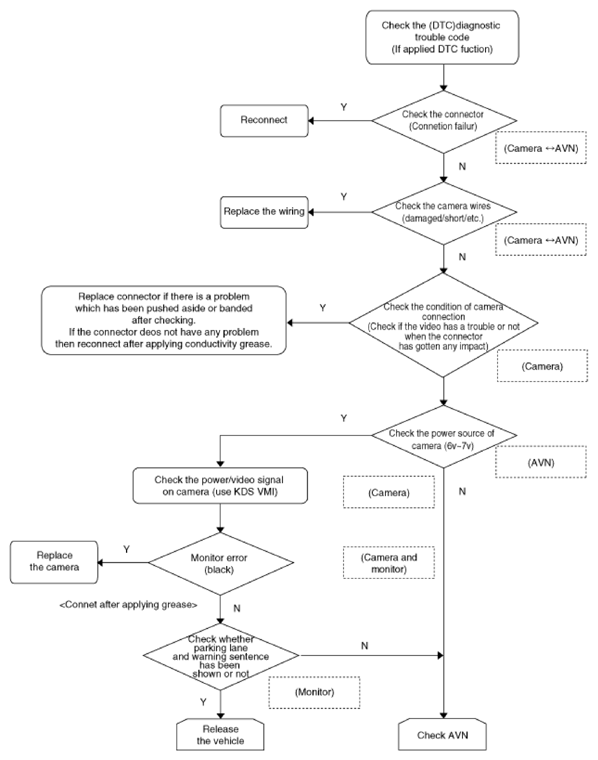

R-1. Inspect in following order when black screen has been occurred (camera - AVN direct connection specification)
R-1. Inspect in following order when black screen has been occurred (camera - AVN direct connection specification)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
