Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

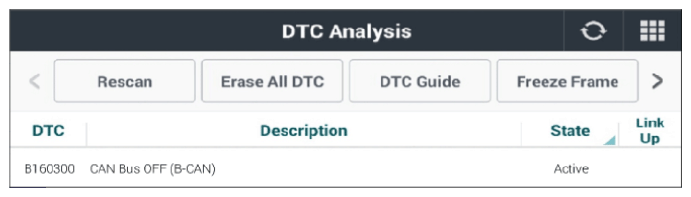

 Fig. 1
G13288420Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to "Wiring Inspection " procedure.

History/Pending Fault

  1. Fault is intermittent caused by poor contact in "IBU-BCM"'s connector or was repaired and "IBU-BCM" memory was not cleared after repair.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Repair or replace as necessary, go to "Verification of Repair " procedure.
