Circuit Inspection

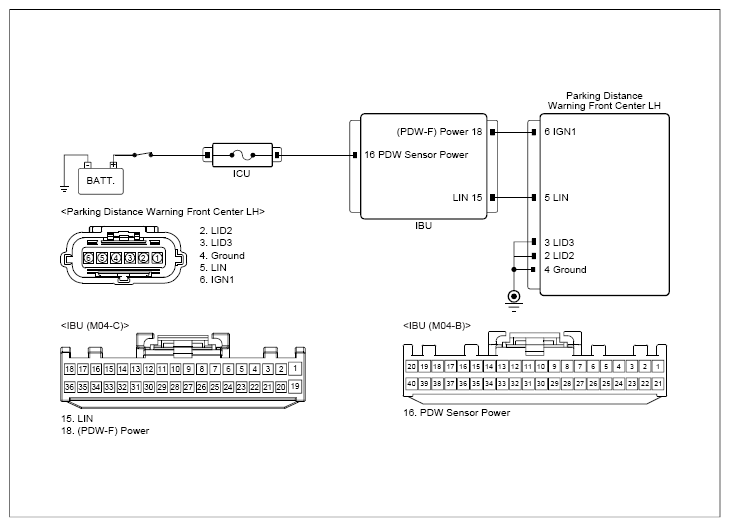

G13288393Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 PDW front center LH connector 6 (ignition1) IBU connector 18 (PDW-F power) Approx. below 1Ω
PDW front center LH connector 4 (ground) Chassis ground - Approx. below 1Ω
  1. Engine "ON"
  2. Gear "D"
 PDW front center LH connector 5 (LIN) Chassis ground - Fig. 1

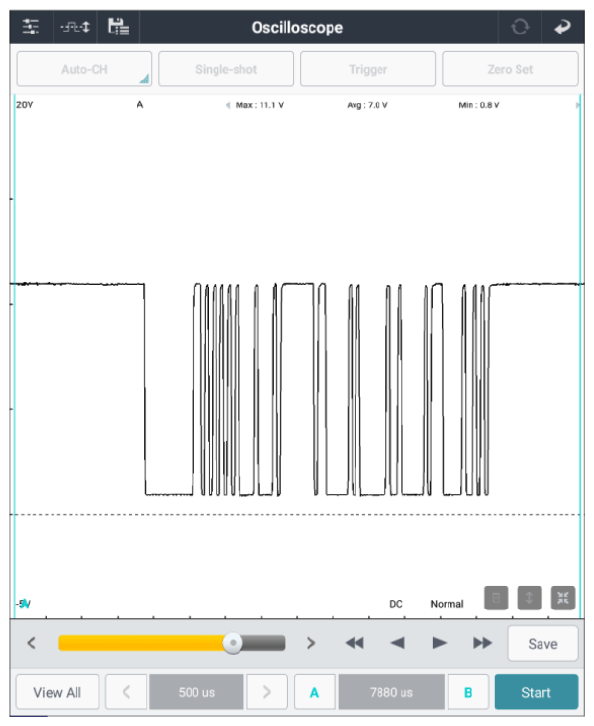

G13288394Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Go to "Component Inspection " procedure.

No Good

  1. Repair as necessary, go to "Verification of Repair " procedure.
