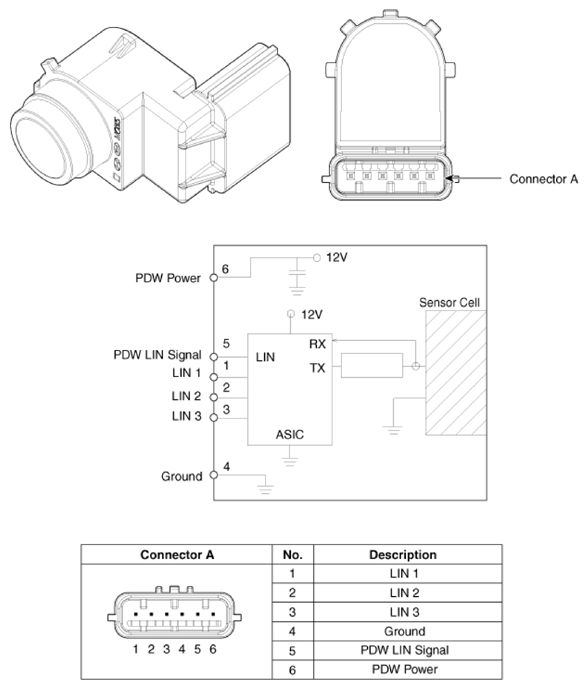

Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Collision/Avoidance >> Parking Distance Warning (PDW) System >> Parking Distance Warning (PDW) Sensor >> Schematic Diagrams >> Circuit Diagram
