Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

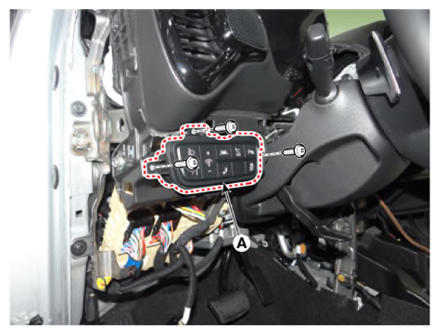

  3. Remove the side crash pad switch assembly (A) by loosening the screws.
    G13283247Courtesy of KIA MOTORS AMERICA, INC.

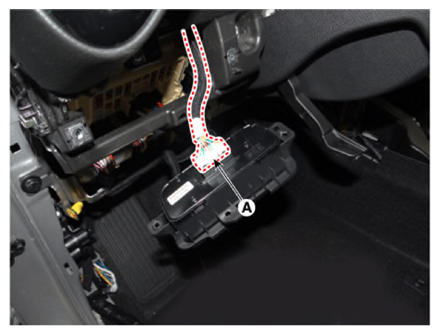

  4. Disconnect the connector (A) from the side crash pad switch assembly.
    G13283248Courtesy of KIA MOTORS AMERICA, INC.
