Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P"
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "Verification of Repair " procedure.
 Fig.1 to 6
CAUTION: In case of replacing TCM or clutch pack perform following procedures.

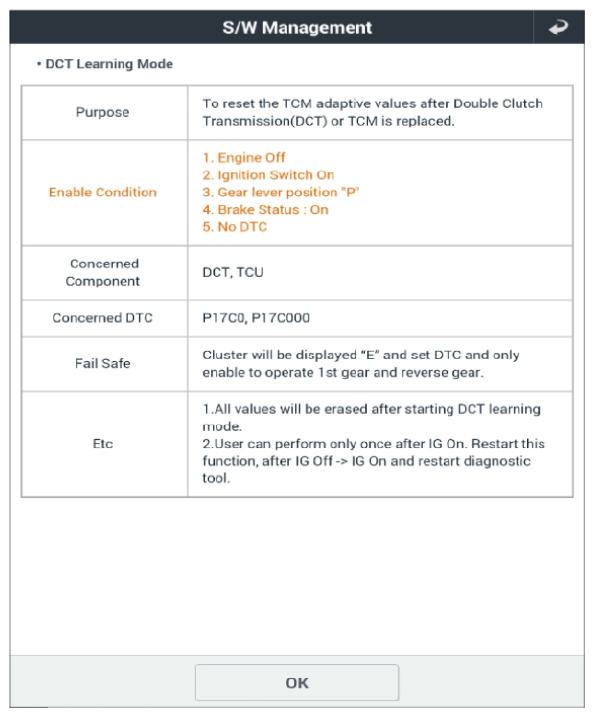

G13291030Courtesy of KIA MOTORS AMERICA, INC.

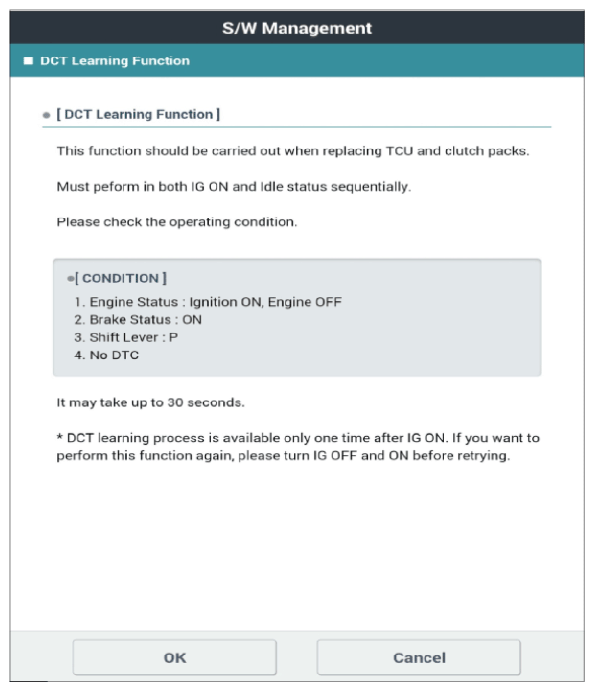

G13291031Courtesy of KIA MOTORS AMERICA, INC.

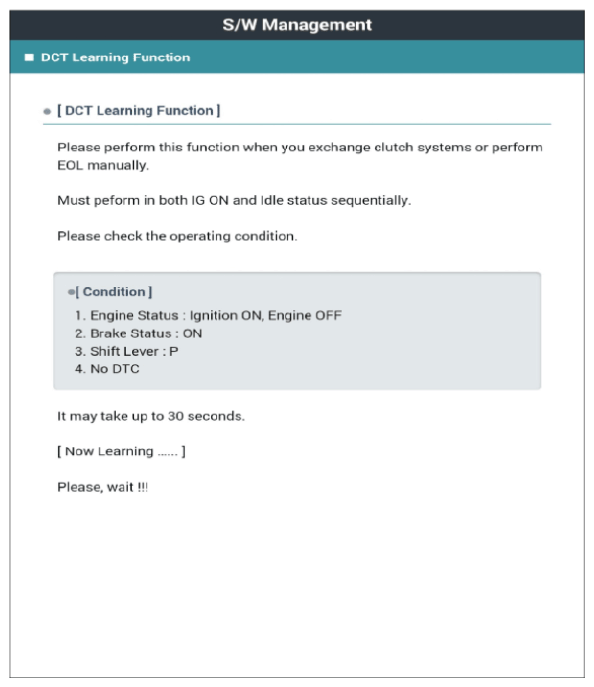

G13291032Courtesy of KIA MOTORS AMERICA, INC.

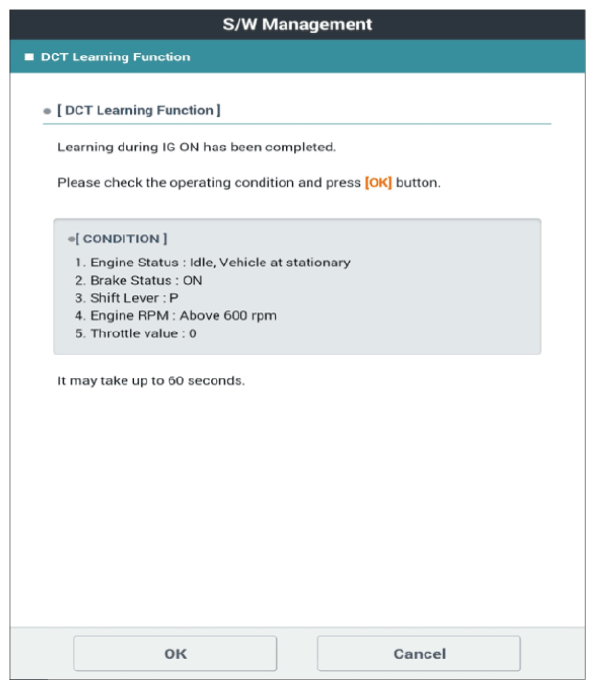

G13291033Courtesy of KIA MOTORS AMERICA, INC.

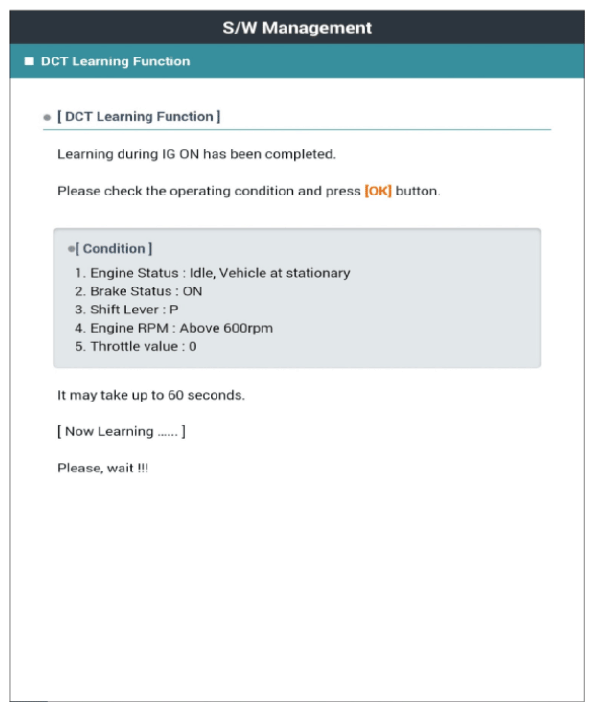

G13291034Courtesy of KIA MOTORS AMERICA, INC.

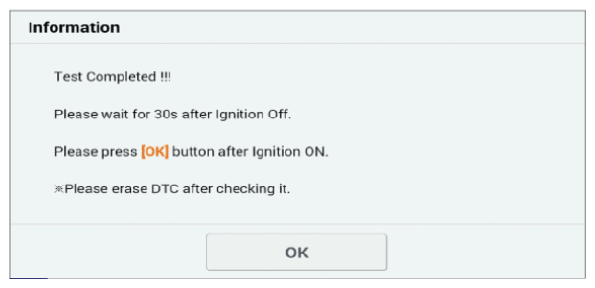

G13291035Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Ignition "ON"
  4. Select the "Vehicle S/W Management" about related DTC with KDS.
  5. Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.
 Fig.1 to 4
CAUTION: In case of replacing DCT perform following procedures.

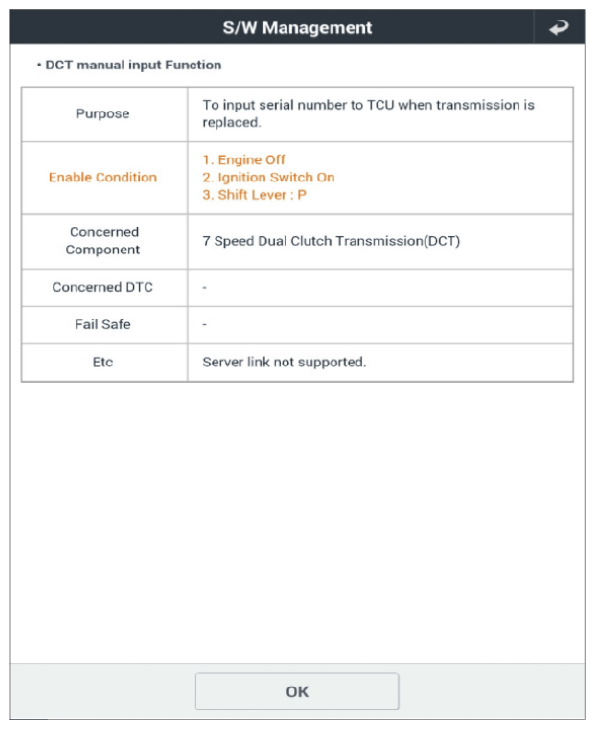

G13291036Courtesy of KIA MOTORS AMERICA, INC.

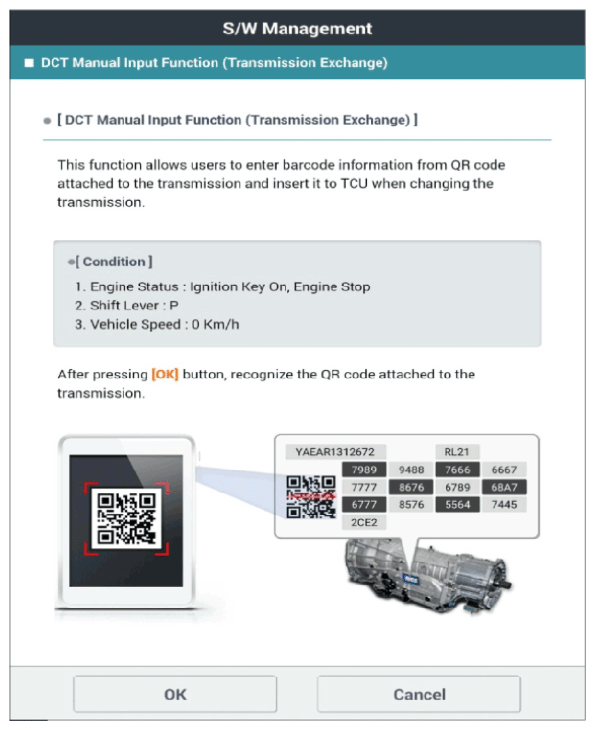

G13291037Courtesy of KIA MOTORS AMERICA, INC.

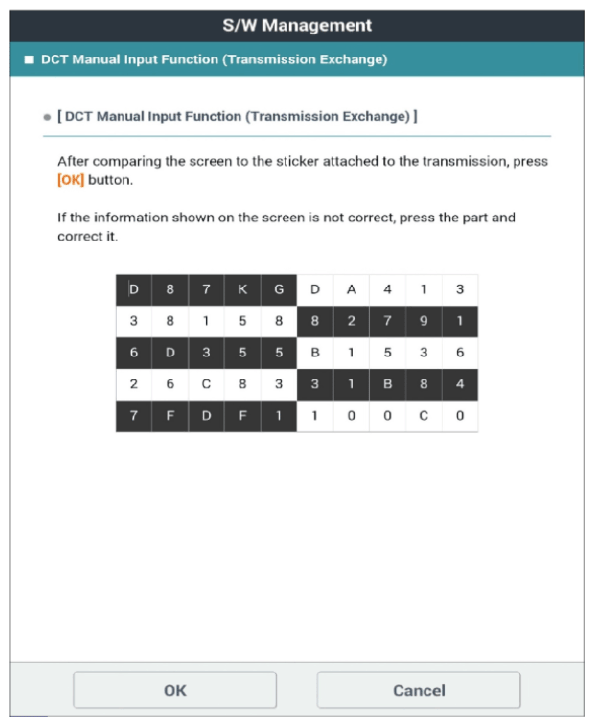

G13291038Courtesy of KIA MOTORS AMERICA, INC.

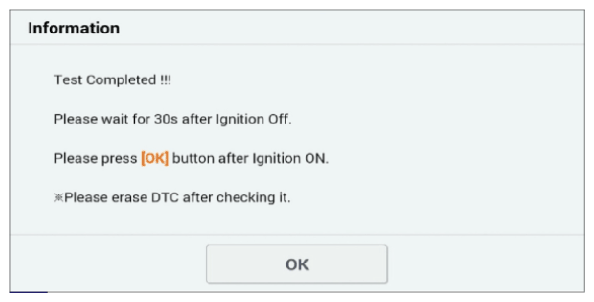

G13291039Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Clutch compensation value setting" and go to "Verification of Repair " procedure.
 Fig.1 to 8
CAUTION: In case of replacing TCM/clutch pack/transmission perform following procedures.

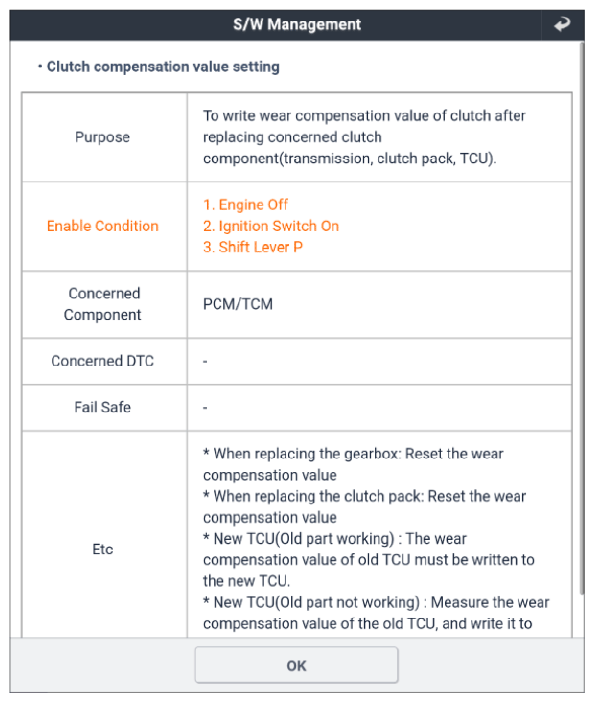

G13291040Courtesy of KIA MOTORS AMERICA, INC.

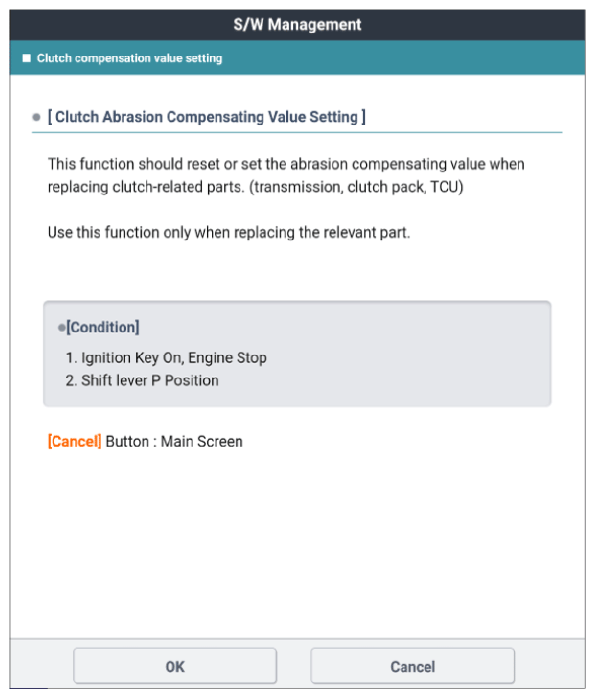

G13291041Courtesy of KIA MOTORS AMERICA, INC.

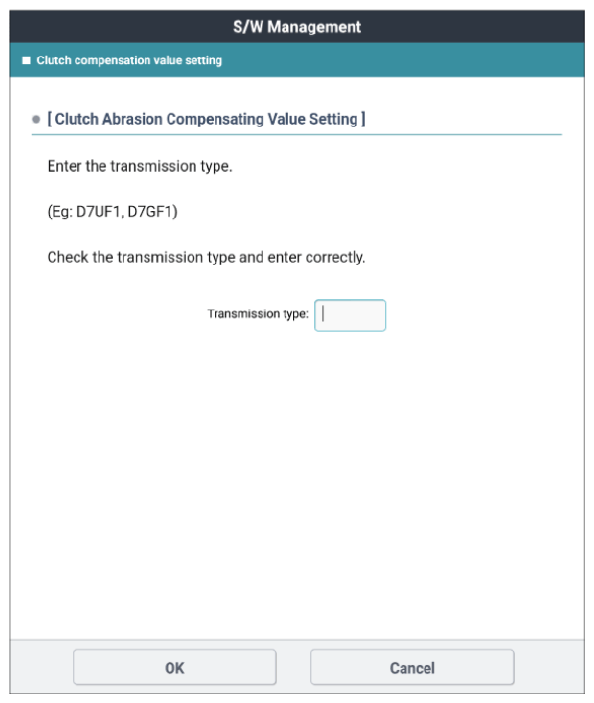

G13291042Courtesy of KIA MOTORS AMERICA, INC.

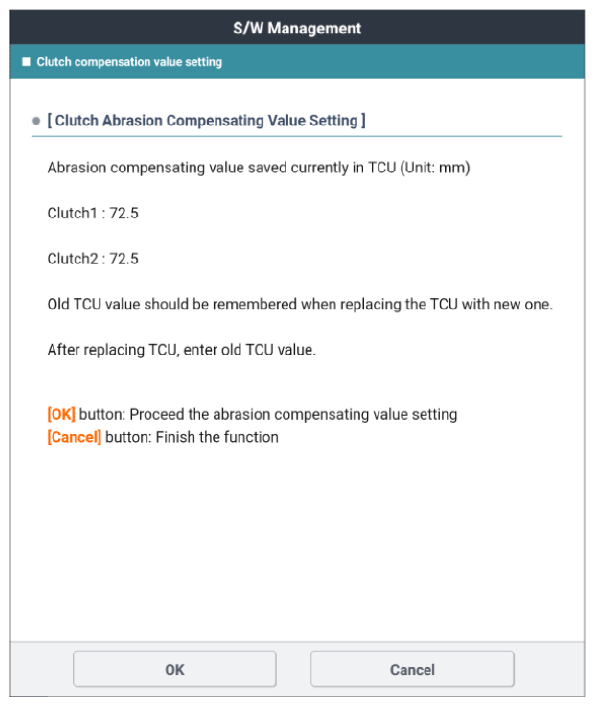

G13291043Courtesy of KIA MOTORS AMERICA, INC.

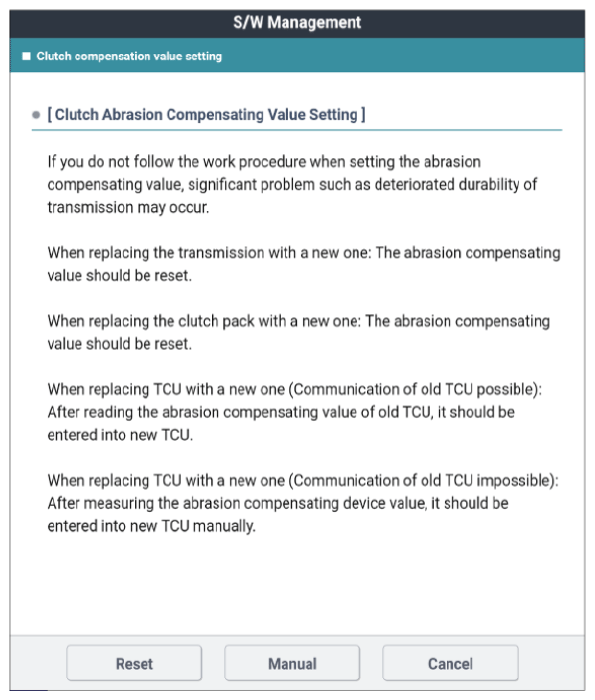

G13291044Courtesy of KIA MOTORS AMERICA, INC.

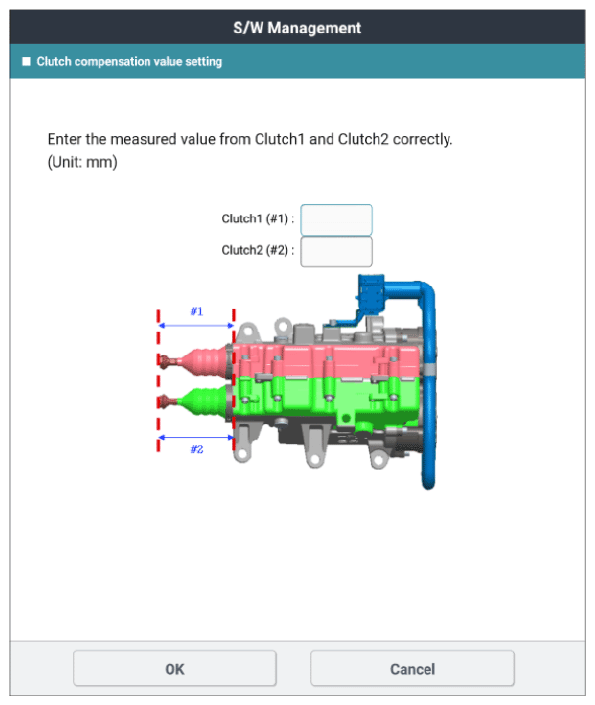

G13291045Courtesy of KIA MOTORS AMERICA, INC.
G13291046Courtesy of KIA MOTORS AMERICA, INC.
G13291047Courtesy of KIA MOTORS AMERICA, INC.
