Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

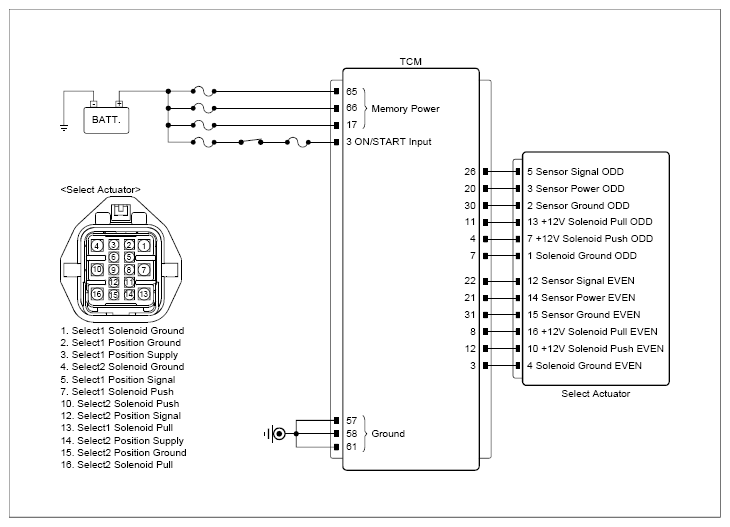

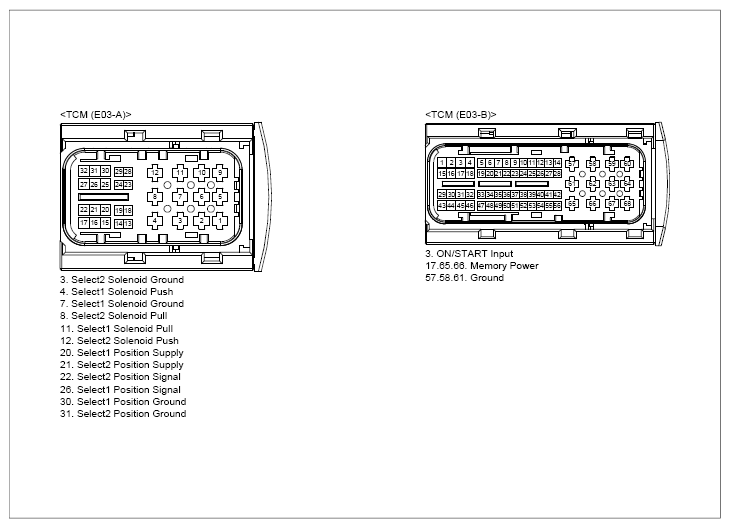

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Gate select actuator connector | 14 (power) | Chassis ground | - | Approx. 8.7V |
|
Gate select actuator connector | 15 (ground) | Chassis ground | - | Approx. below 1Ω |
|
Gate select actuator connector | 12 (signal) | TCM connector | 22 (signal) | Approx. below 1Ω |
|
Gate select actuator connector | 12 (signal) | Gate select actuator connector | 14 (power) | ∞ (infinity)Ω |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- If problem still occurs, replace "Gate Select Actuator" and then go to "Verification of Repair " procedure.
No Good
- Repair open or short in circuit between gate select actuator and TCM and then go to "Verification of Repair " procedure.
