Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

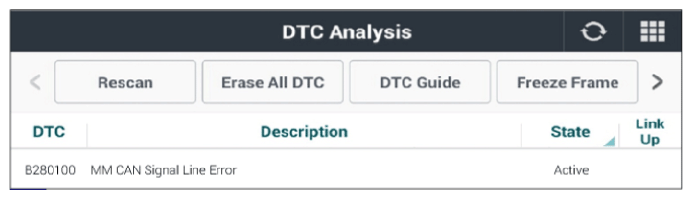

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault

Fault is intermittent caused by poor contact in the sensor's and/or SML connector or was repaired and SML memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
Repair as necessary and then go to "Verification of Repair " procedure.
