Circuit Inspection
| Waveform measurement | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

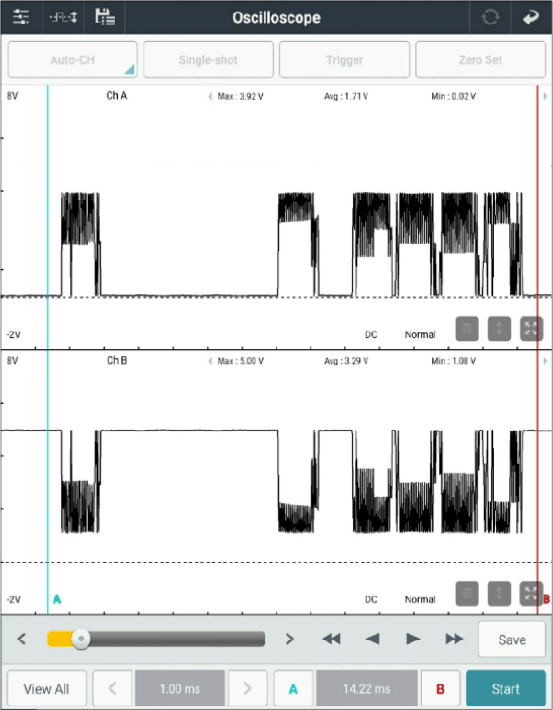

WPC harness connector | 5 (B-CAN High) | Chassis ground | - | Figure |
| WPC harness connector | 6 (B-CAN Low) | Chassis ground | - | ||
| Resistance measurement | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

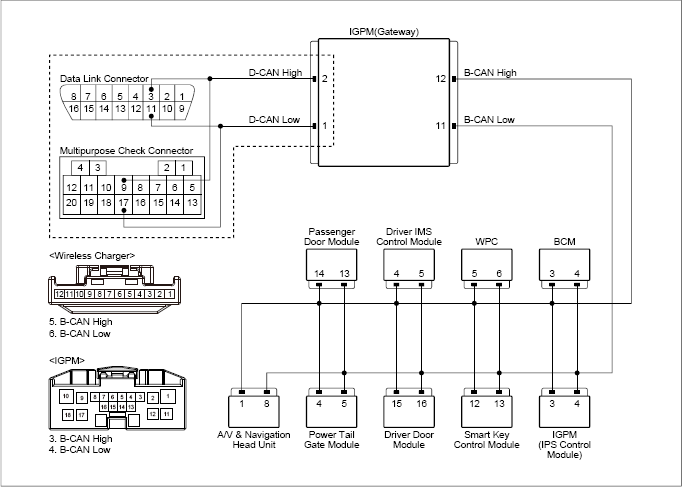

WPC harness connector | 5 (B-CAN High) | IGPM harness connector | 12 (B-CAN High) | Approx. below 1Ω |
| WPC harness connector | 6 (B-CAN Low) | IGPM harness connector | 11 (B-CAN Low) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in B-CAN Communication circuit and then go to "VERIFICATION OF REPAIR " procedure.
- If the problem occurs again, go to "COMPONENT INSPECTION " procedure.
