Ground Circuit Inspection
- Ignition "OFF"
- Disconnect Passenger side Body Sensor connector.

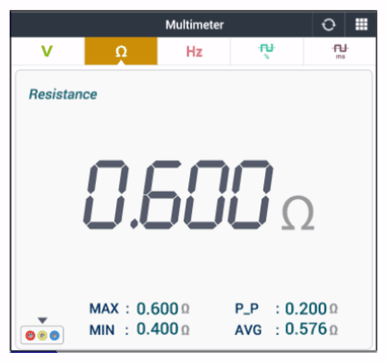

- Measure the resistance between Pin No. 4 (Ground) terminal of the Passenger side Body Sensor harness connector and chassis ground.
Specification: 1Ω below
- Is the measured resistance within specification?
YES
- Go to "CAN COMMUNICATION LINE INSPECTION " procedure.
NO
- Check for open/short in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
