Monitor KDS Data

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"

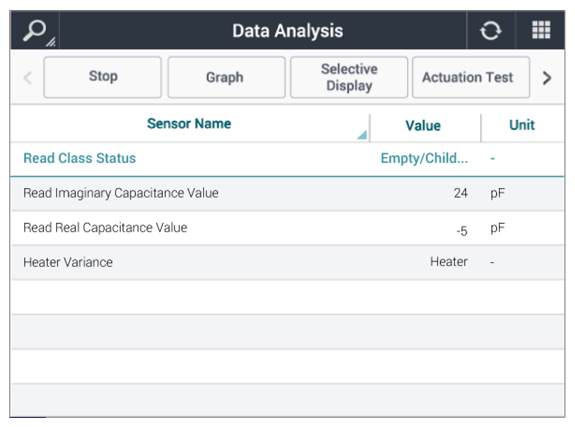

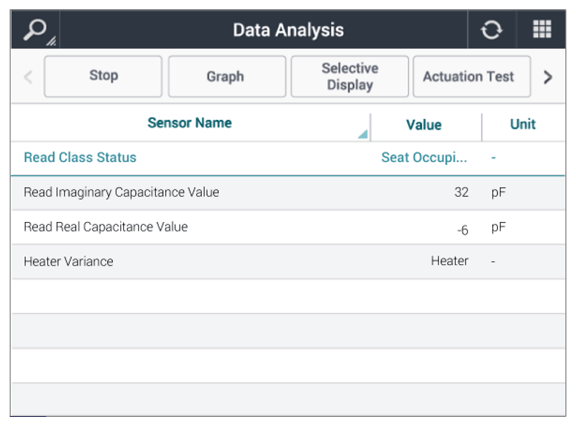

  4. Monitor the "Read Class Status" parameter in "Current Data" with KDS.
    G13048725Courtesy of KIA MOTORS AMERICA, INC.
    G13048726Courtesy of KIA MOTORS AMERICA, INC.
  5. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
