Component Replacement

  1. Ignition "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition "ON"
  4. Perform "Body Sensor Reset" in "Vehicle S/W Management" with KDS.

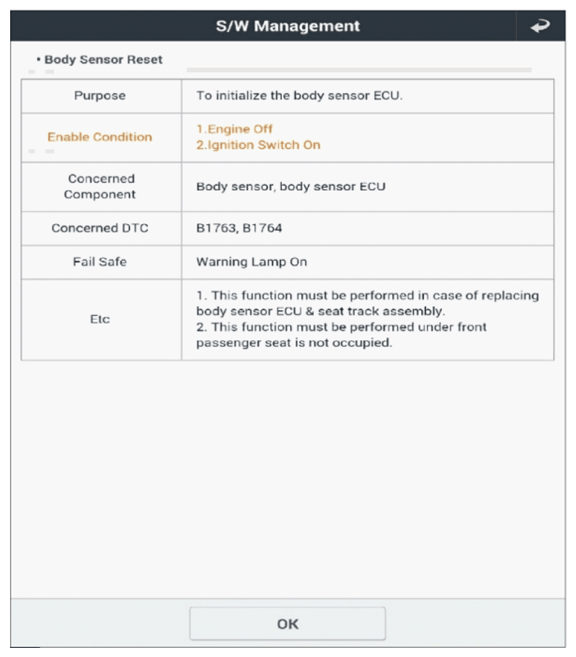

    G13048731Courtesy of KIA MOTORS AMERICA, INC.

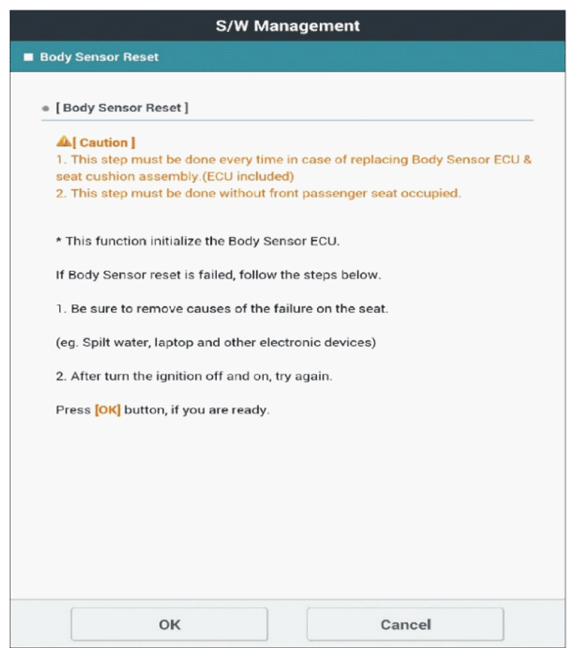

    G13048732Courtesy of KIA MOTORS AMERICA, INC.

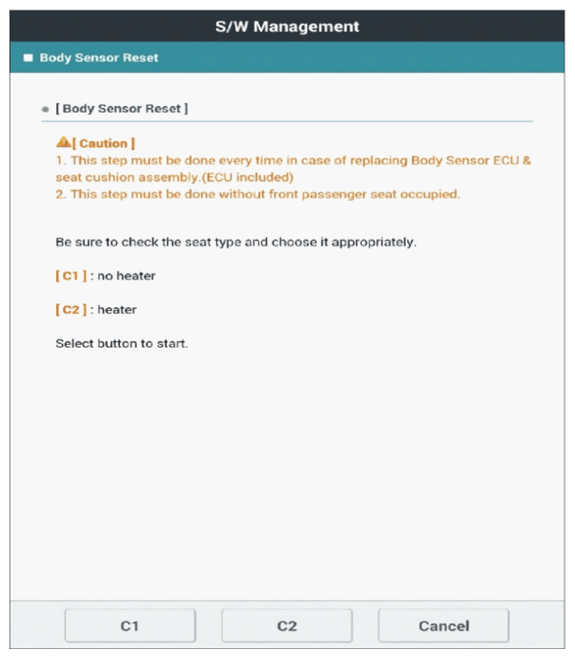

    G13048733Courtesy of KIA MOTORS AMERICA, INC.

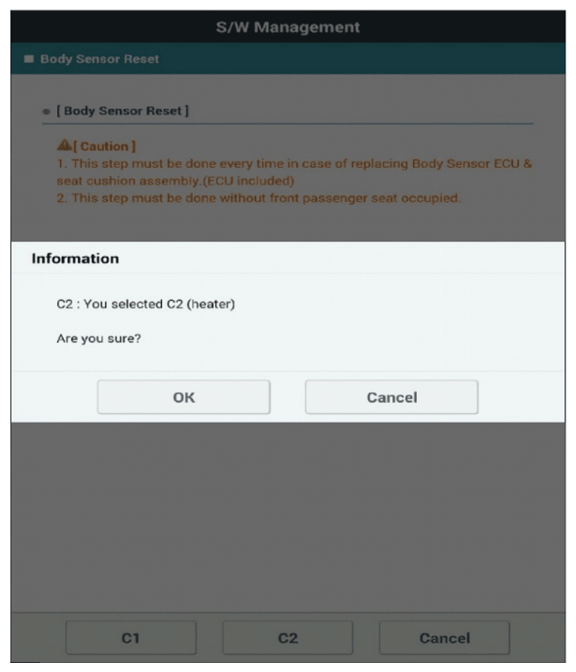

    G13048734Courtesy of KIA MOTORS AMERICA, INC.

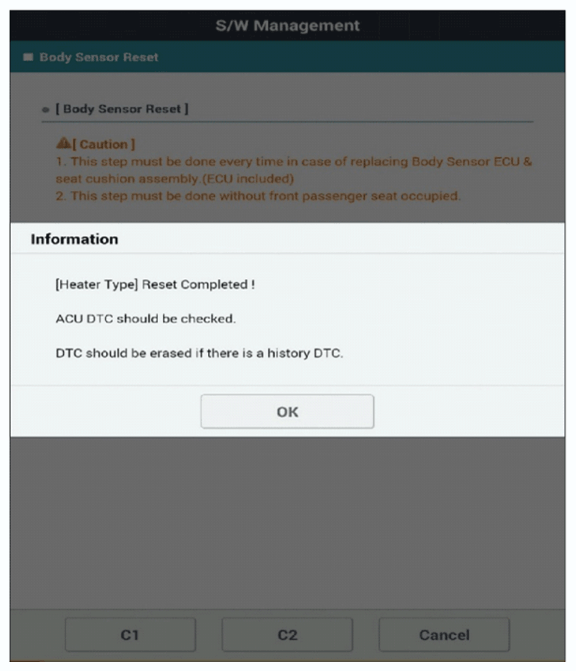

    G13048735Courtesy of KIA MOTORS AMERICA, INC.
  5. Turn Ignition "OFF" and then "ON"
  6. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
  7. Clear all DTCs in the system with KDS.
  8. Re-check DTC in the system with KDS.
  9. Is DTC stored in the system?
