Ground Circuit Inspection

Ignition "OFF'.
Disconnect Passenger side Body Sensor connector.

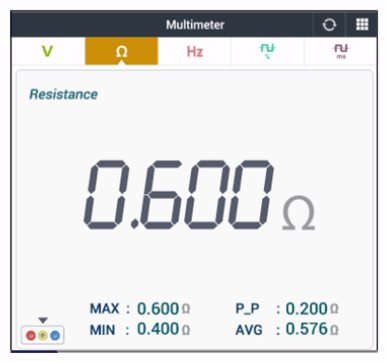

Measure the resistance between Pin No. 4 (Ground) terminal of the Passenger side Body Sensor harness connector and chassis ground.
Specification: 1Ω below

Courtesy of KIA MOTORS AMERICA, INC.
Is the measured resistance within specification?
YES
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace Passenger side Body Sensor ECU and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check for open/short in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
