Component Replacement

  1. Ignition "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition "ON"
  4. Perform "Body Sensor Reset" in "Vehicle S/W Management" with KDS.

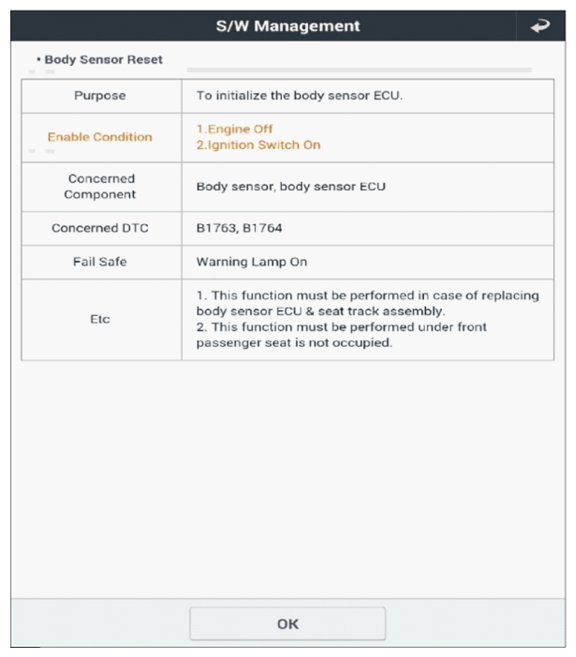

    G13048718Courtesy of KIA MOTORS AMERICA, INC.

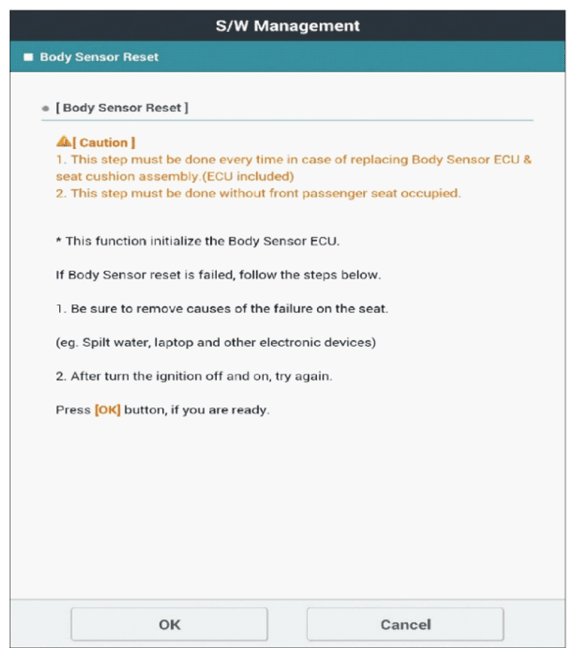

    G13048719Courtesy of KIA MOTORS AMERICA, INC.

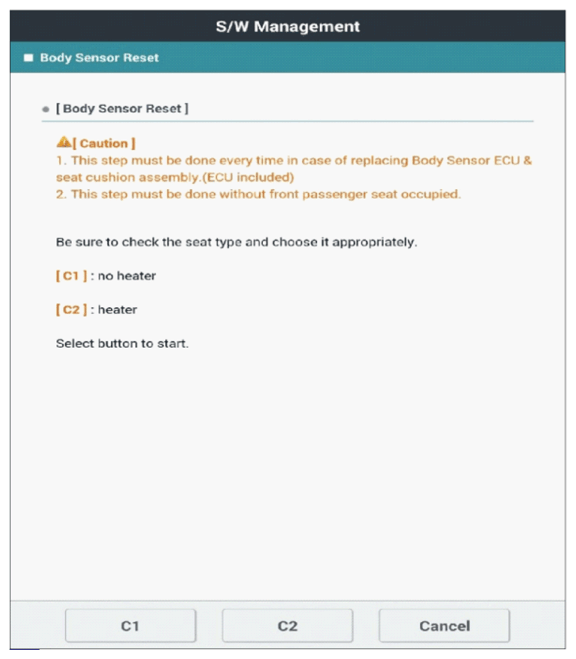

    G13048720Courtesy of KIA MOTORS AMERICA, INC.

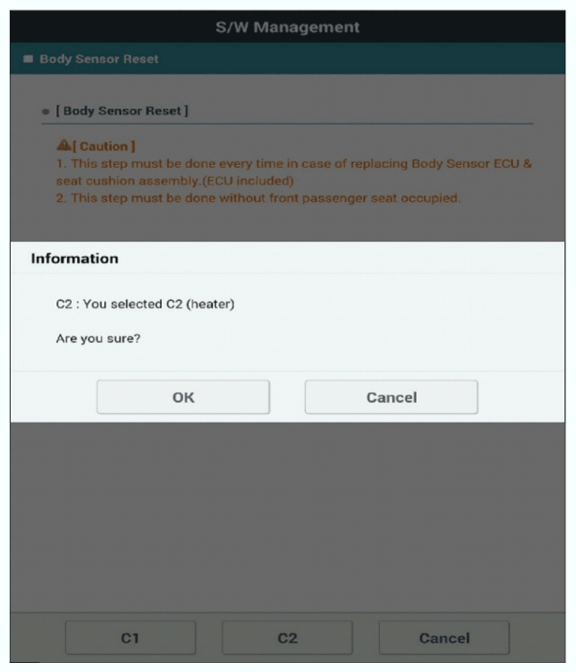

    G13048721Courtesy of KIA MOTORS AMERICA, INC.

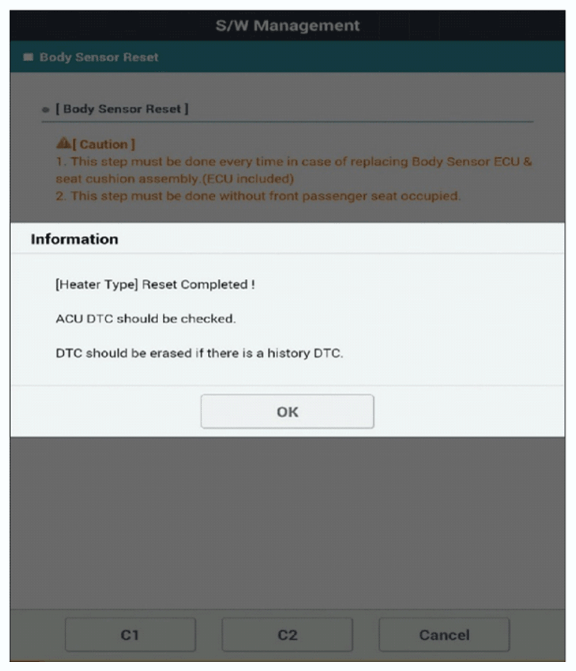

    G13048722Courtesy of KIA MOTORS AMERICA, INC.
  5. Turn Ignition "OFF" and then "ON"
  6. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
  7. Clear all DTCs in the system with KDS.
  8. Re-check DTC in the system with KDS.
  9. Is DTC stored in the system?
