Monitor KDS Data

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"

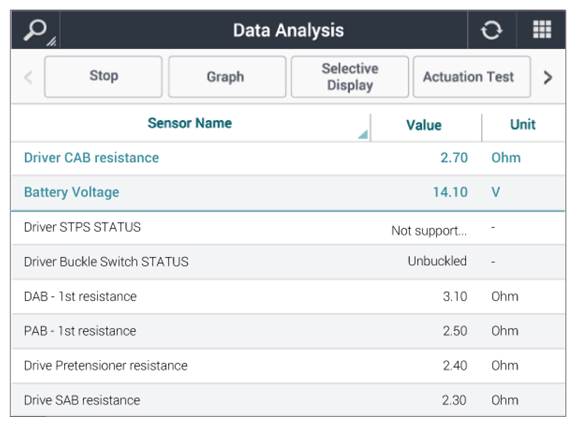

  4. Monitor the "Drive CAB resistance" parameter in "Current Data" with KDS.

    Specification:  1.0Ω< Resistance of curtain airbag front-Driver< 7.2Ω

    Reference:  In a case of an open in the Curtain Airbag - Driver circuit: FAIL

    In a case of a short to battery in the Curtain Airbag - Driver circuit: FAIL

    In a case of a short to ground in the Curtain Airbag - Driver circuit: FAIL

    G13048626Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the parameter displayed within specification?

    YES

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

    NO
