Monitor KDS Data
- Ignition switch "OFF"
- Connect KDS to Data Link Connector (DLC).
- Ignition switch "ON"

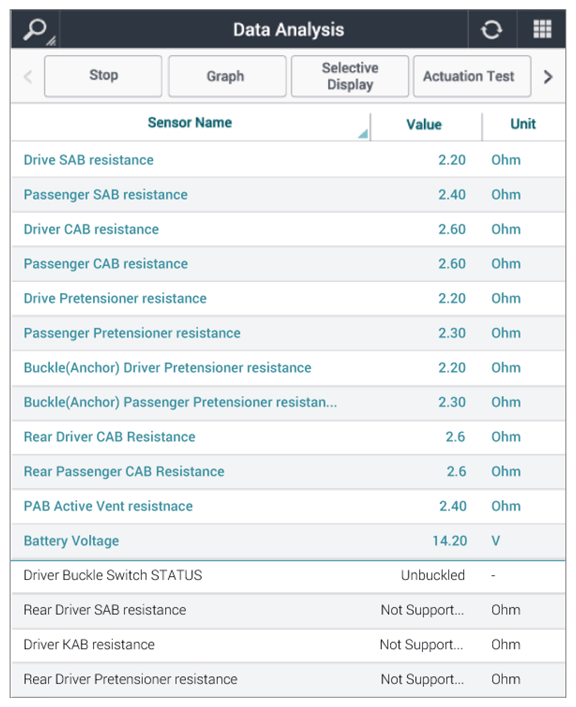

- Monitor the each airbag resistance parameter in "Current Data" with KDS.
Specification: 1.0Ω< Resistance of airbag < 7.2Ω
Reference: In a case of an open in the airbag circuit: FAIL
In a case of a short to battery in the airbag circuit: FAIL
In a case of a short to ground in the airbag circuit: FAIL
- Is the parameter displayed within specification?
YES
- Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
CAUTION: If you strike or spin the SRSCM at the IG "ON" state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.NO
- Carefully re-do this troubleshooting guide steps.
- Check for short between ignition circuit of airbag and repair as necessary.
- If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
