Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the floor console.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  2. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  4. Remove the instrument cluster.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  5. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  6. Remove the glove box housing.

    (Refer to Crash Pad - "GLOVE BOX HOUSING ")

  7. Remove the audio unit or AVN head unit.

    (Refer to Body Electrical System - "AUDIO UNIT ")

    (Refer to Body Electrical System - "AVN (AUDIO VIDEO NAVIGATION) HEAD UNIT ")

  8. Remove the crash pad center lower panel.

    (Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

  9. Remove the steering column shroud lower panel.

    (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

  10. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  11. Remove the steering wheel.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  12. Remove the center fascia upper panel.

    (Refer to Crash Pad - "CENTER FASCIA PANEL ")

  13. Remove the center fascia lower panel.

    (Refer to Crash Pad - "CENTER FASCIA PANEL ")

  14. Remove the multi box.

    (Refer to Crash Pad - "MULTI BOX ")

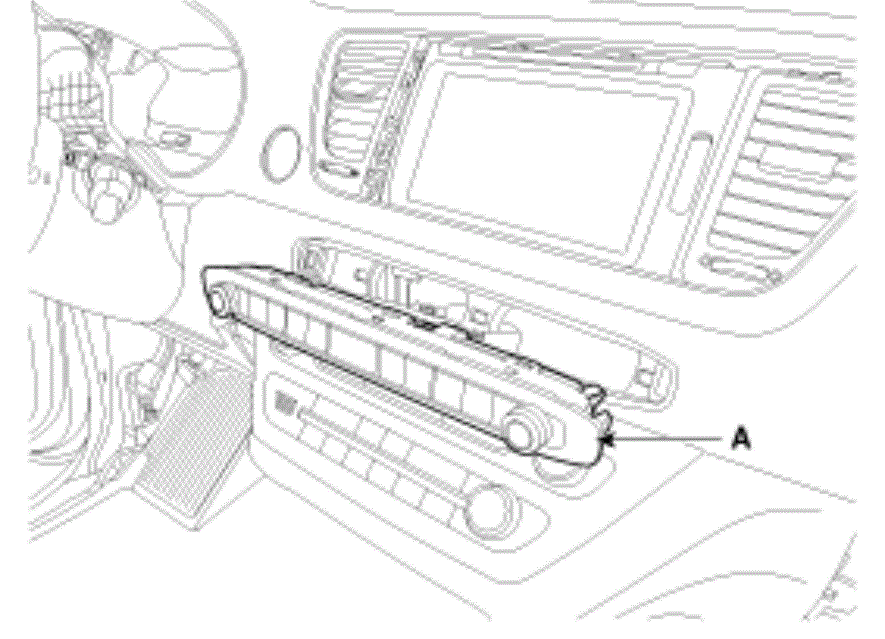

  15. Using a screwdriver, disconnect or remove the navigation switch (A).
    G13045971Courtesy of KIA MOTORS AMERICA, INC.

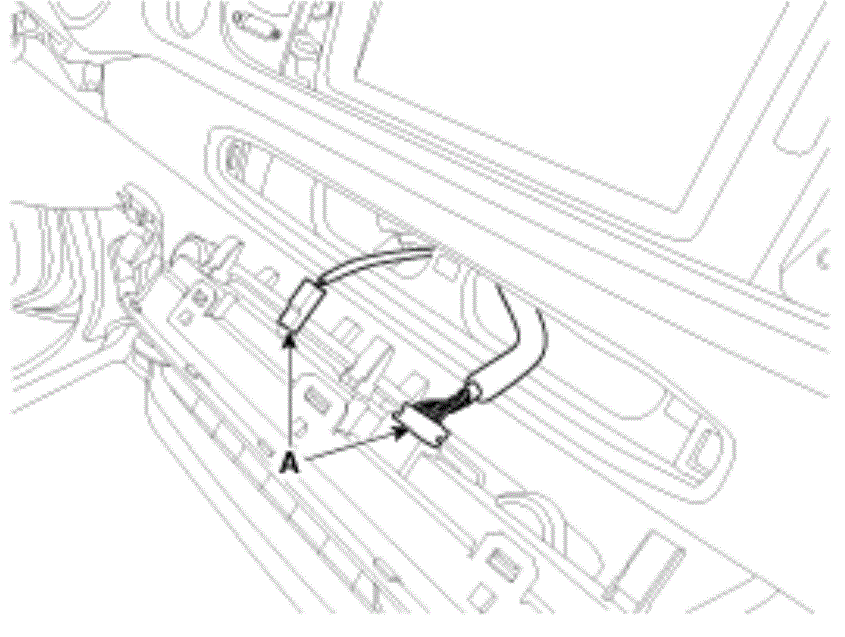

  16. Disconnect the navigation switch connectors (A).
    G13045972Courtesy of KIA MOTORS AMERICA, INC.

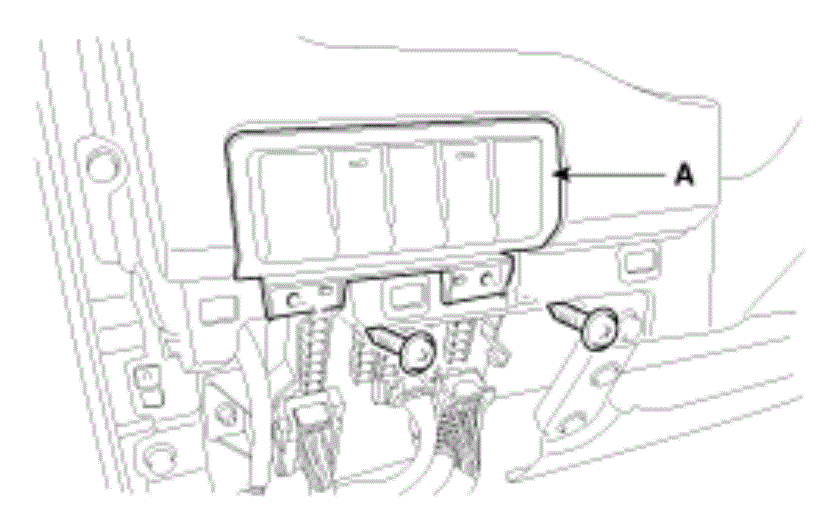

  17. Loosen the screw and remove the crash pad lower switch panel (A).
    G13045973Courtesy of KIA MOTORS AMERICA, INC.

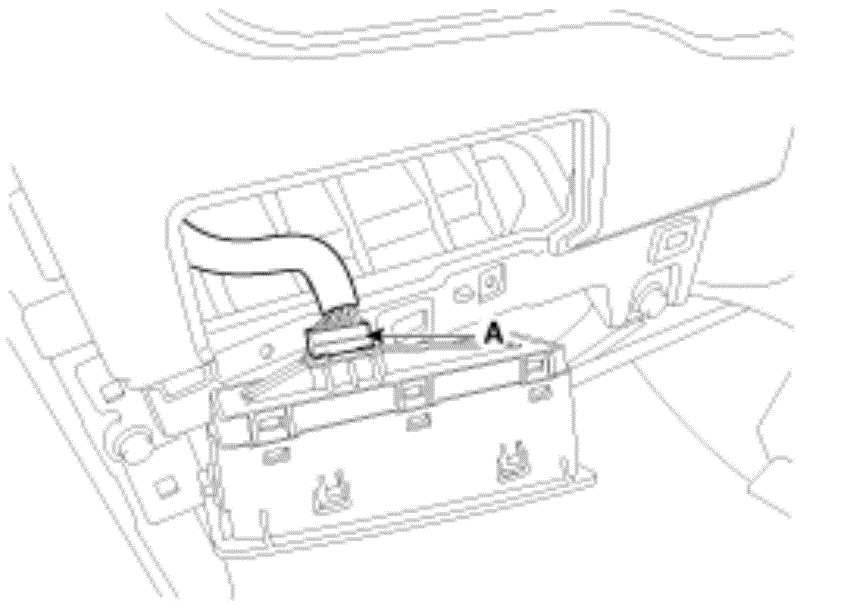

  18. Disconnect the crash pad lower switch panel connector (A).
    G13045974Courtesy of KIA MOTORS AMERICA, INC.

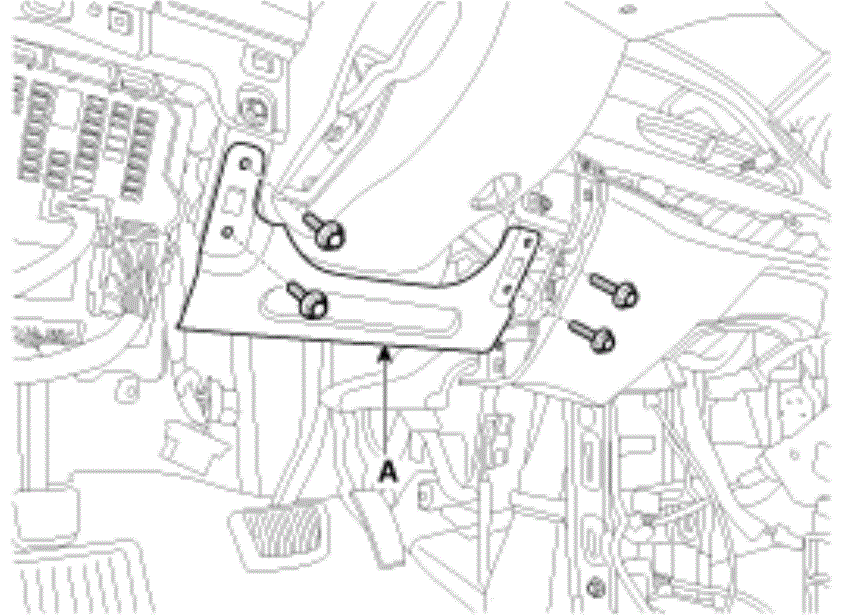

  19. Loosen the bolts and remove the knee bolster panel (A).
    G13045975Courtesy of KIA MOTORS AMERICA, INC.

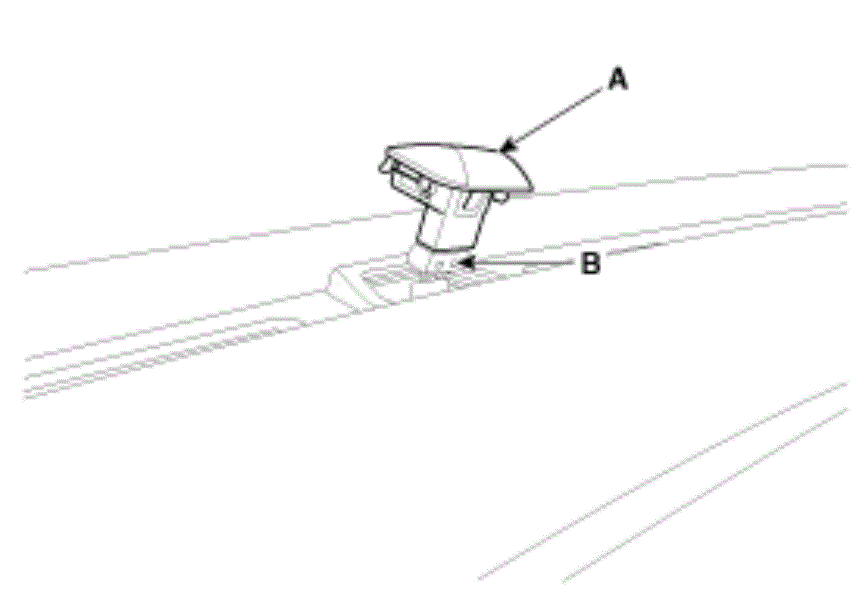

  20. Using a screwdriver or remover, remove the photo sensor (A).
  21. Disconnect the photo sensor connector (B).
    G13045976Courtesy of KIA MOTORS AMERICA, INC.
  22. Remove the center speaker.

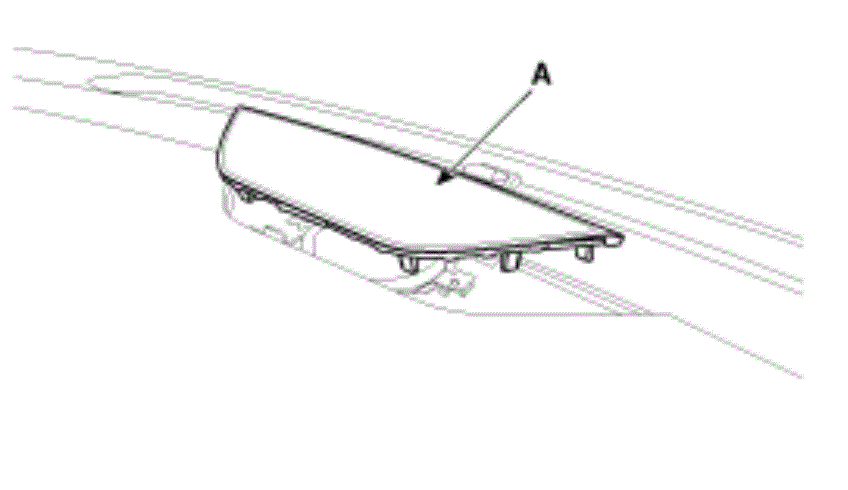

    1. Using a screwdriver or remover, remove the center speaker grill (A).
      G13045977Courtesy of KIA MOTORS AMERICA, INC.

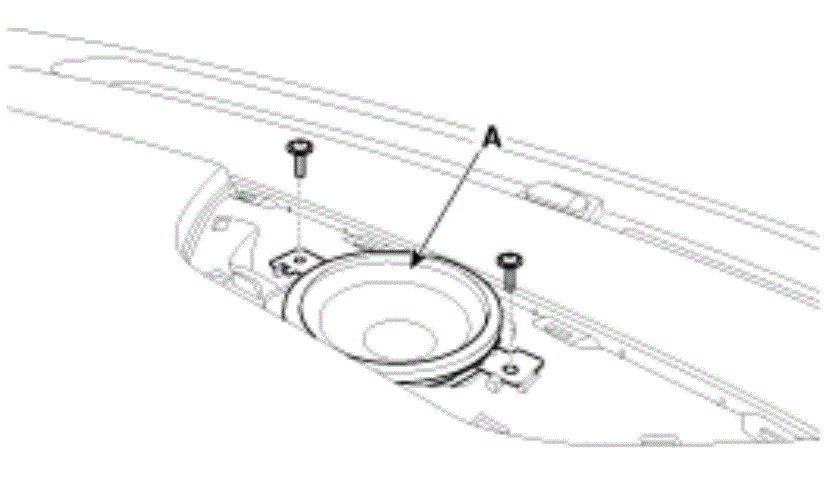

    2. Loosen the screw and remove the center speaker (A).
      G13045978Courtesy of KIA MOTORS AMERICA, INC.

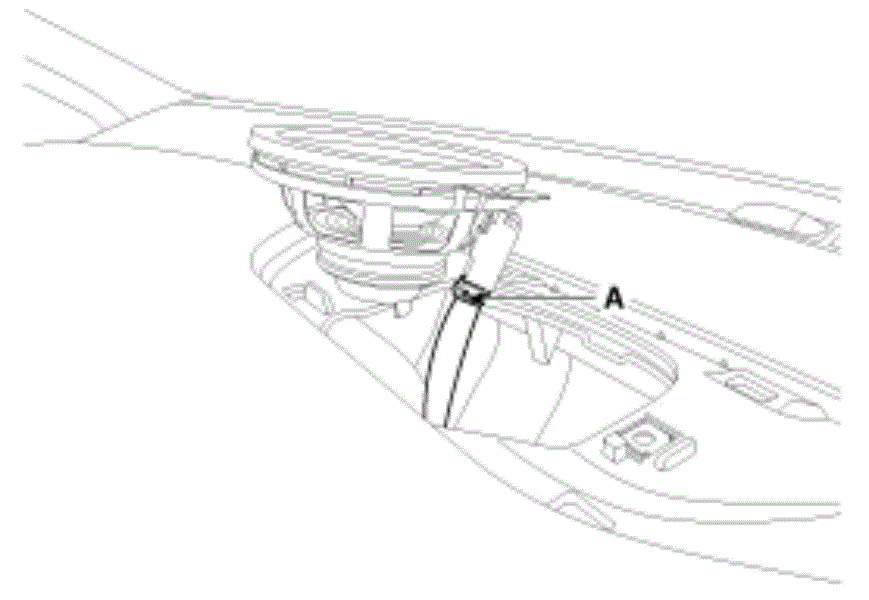

    3. Disconnect the center speaker connector (A).
      G13045979Courtesy of KIA MOTORS AMERICA, INC.

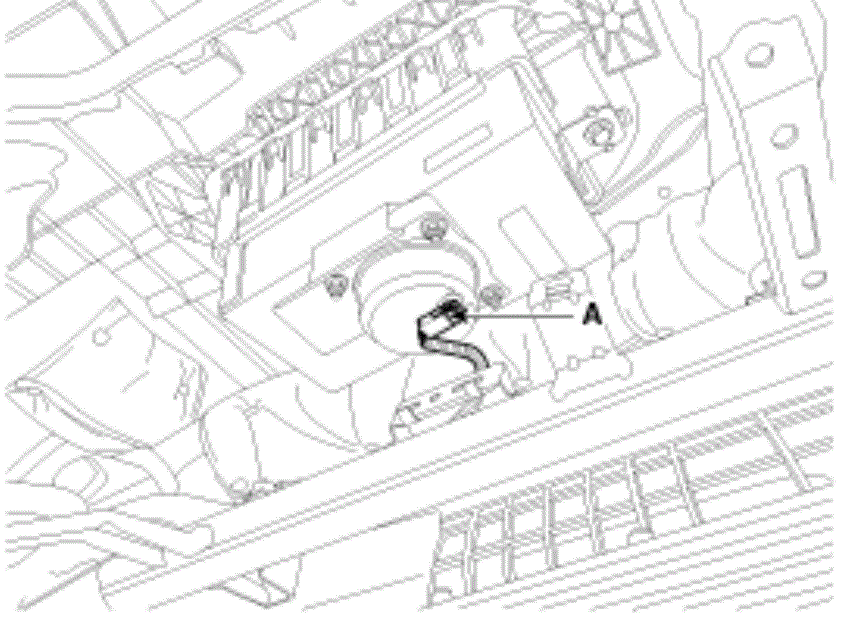

  23. Disconnect the passenger's airbag connector (A).
    G13045980Courtesy of KIA MOTORS AMERICA, INC.

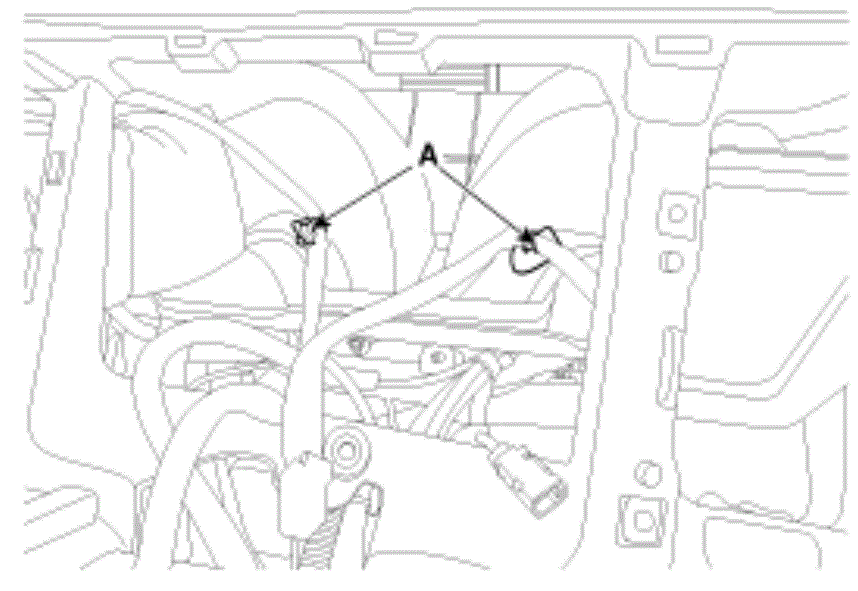

  24. Disconnect the wiring mounting fasteners (A).
    G13045981Courtesy of KIA MOTORS AMERICA, INC.

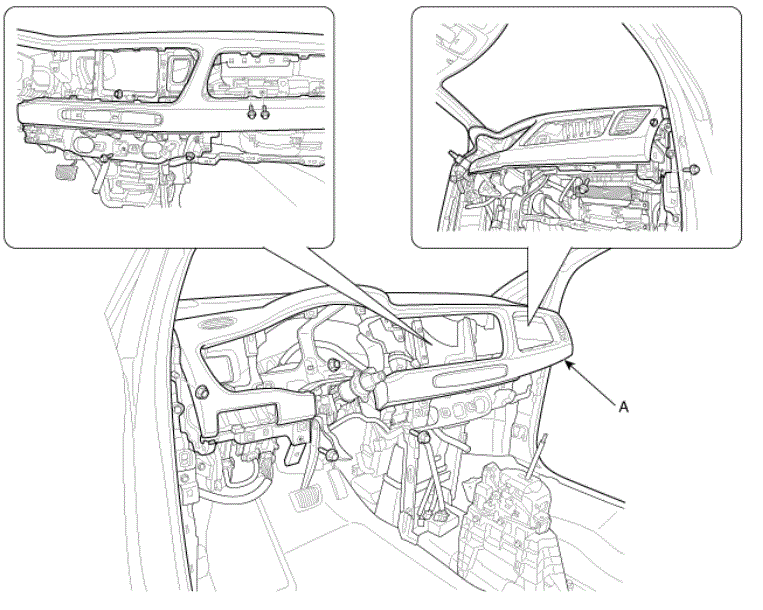

  25. After loosening the mounting bolts and nuts, remove the main crash pad assembly (A).
    G13045982Courtesy of KIA MOTORS AMERICA, INC.

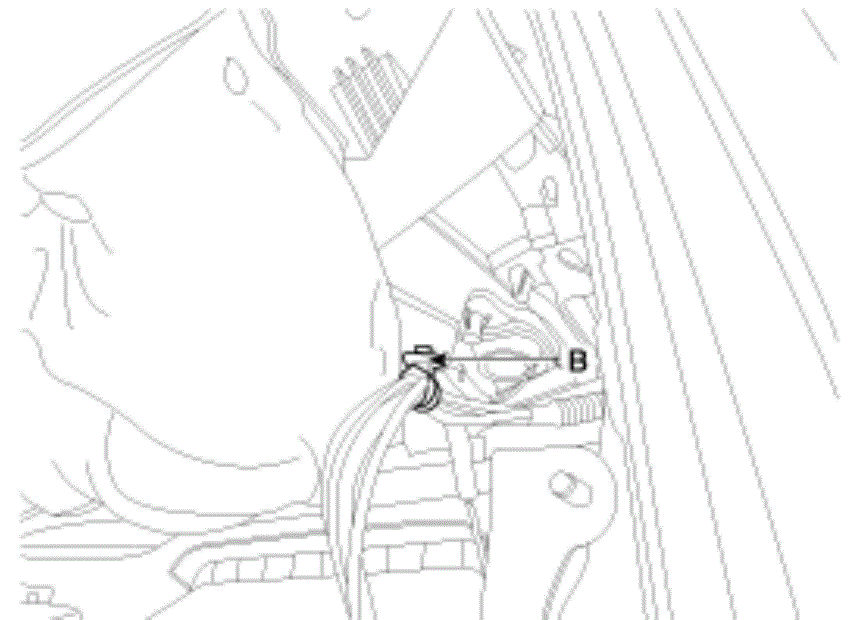

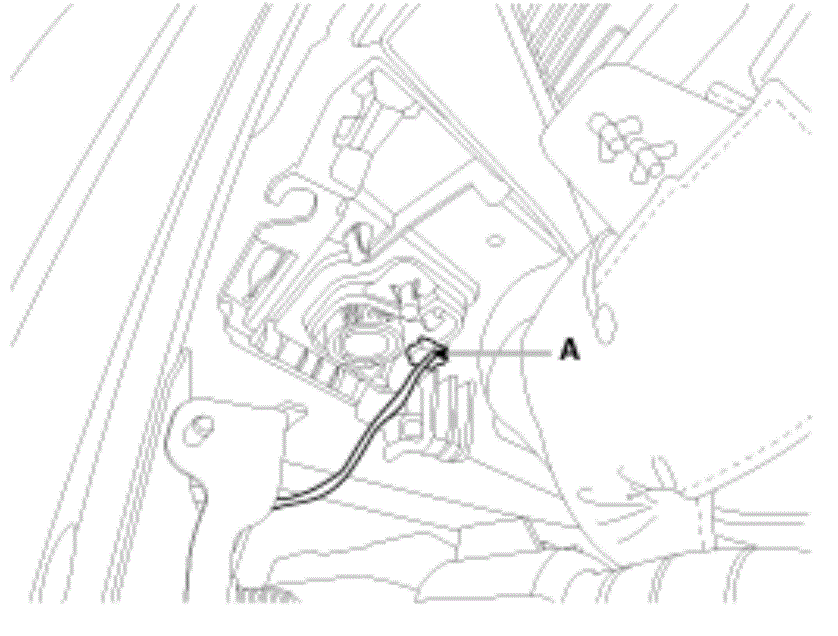

  26. Right before removing the main crash pad, slightly pull out the main crash pad and remove the twitter speaker connector (A) and mounting (B) located at both ends.

    [LH]

    G13045983Courtesy of KIA MOTORS AMERICA, INC.

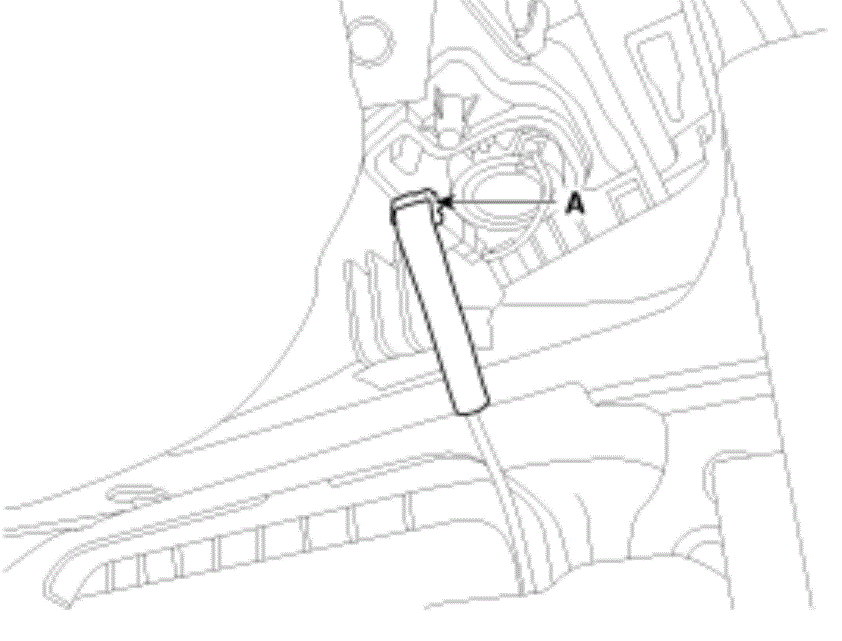

    [RH]

    G13045984Courtesy of KIA MOTORS AMERICA, INC.
    G13045985Courtesy of KIA MOTORS AMERICA, INC.
  27. Install in the reverse order of removal.

    Information

    • Make sure that the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure that the crash pad wire harnesses are not pinched.
    • Make sure that the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, and then enter the customer's radio station presets.
