Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

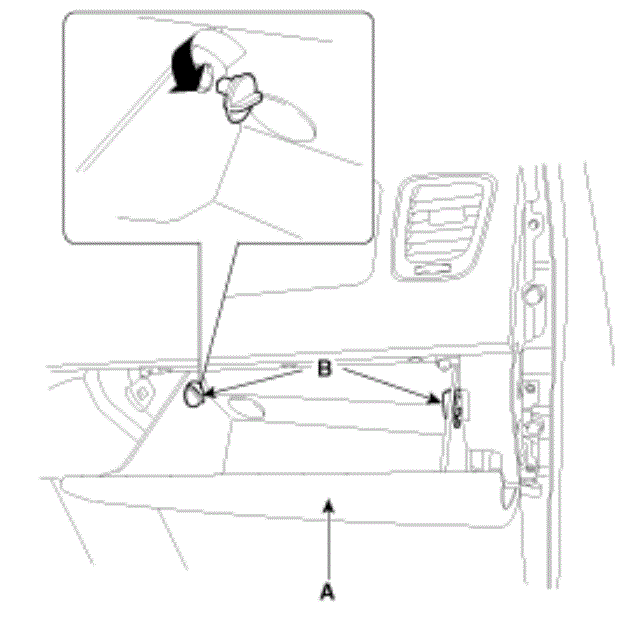

Disconnect the stopper (B) from the glove box (A).

Courtesy of KIA MOTORS AMERICA, INC.

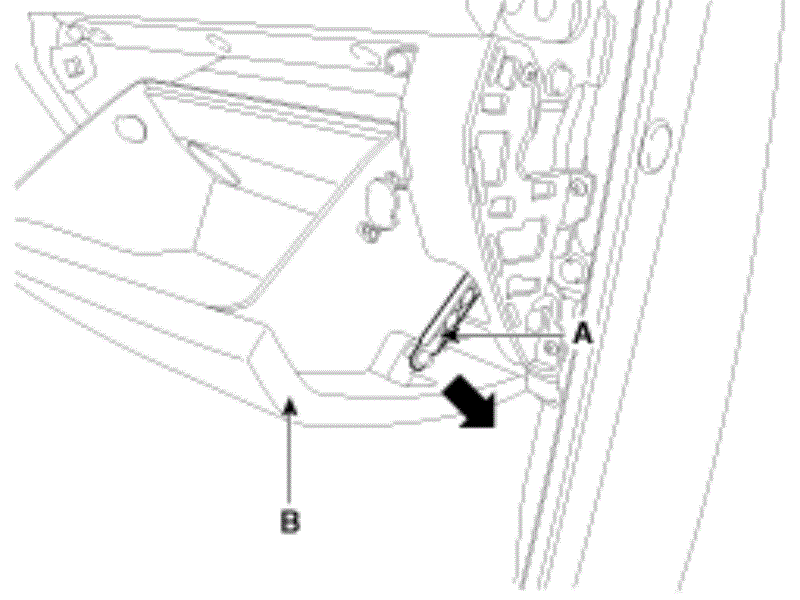

Disconnect the air damper (A) from the glove box (B).

Courtesy of KIA MOTORS AMERICA, INC.

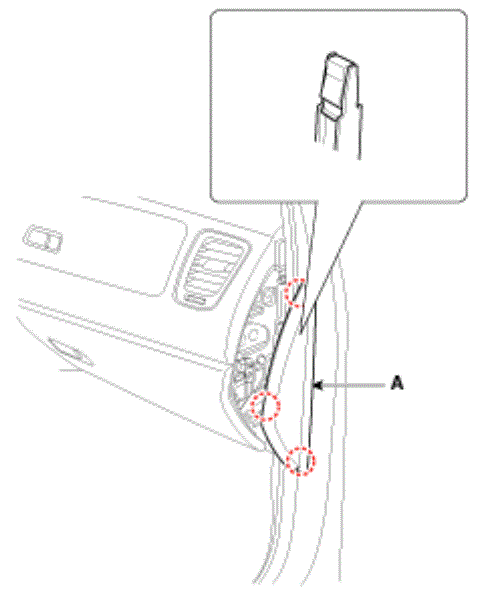

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Courtesy of KIA MOTORS AMERICA, INC.

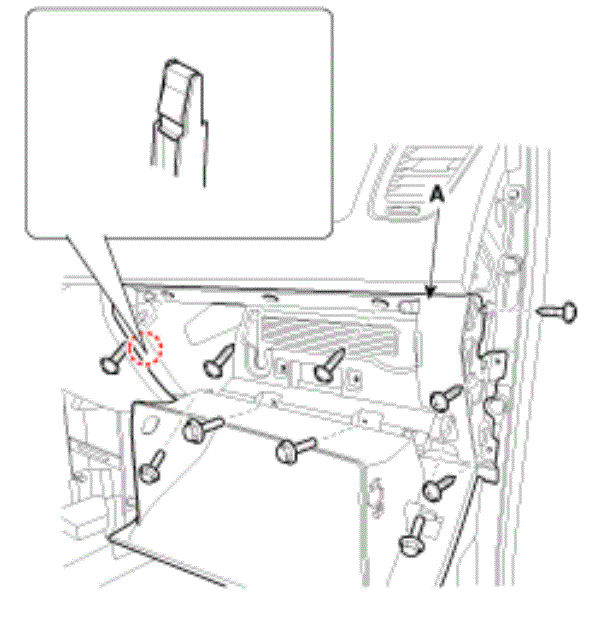

After loosening the mounting screws and bolts, remove the glove box housing (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connectors are connected properly.
- Replace any damaged clips.
