Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the cowl top cover.

    (Refer to "COWL TOP COVER ")

  2. Remove the both front seats.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  3. Remove the main crash pad assembly.

    (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

  4. Disconnect the steering column connectors.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  5. Down the steering column after loosening the mounting bolts.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

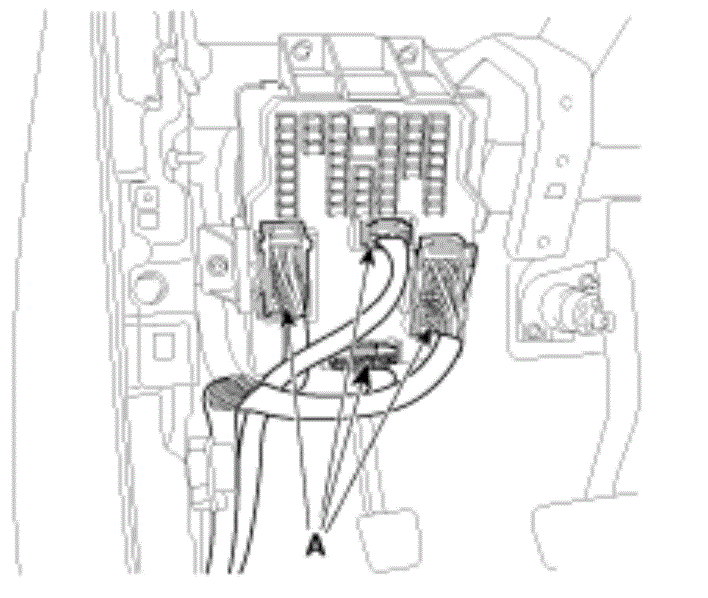

  6. Disconnect the passenger compartment junction box connectors (A).
    G13045987Courtesy of KIA MOTORS AMERICA, INC.

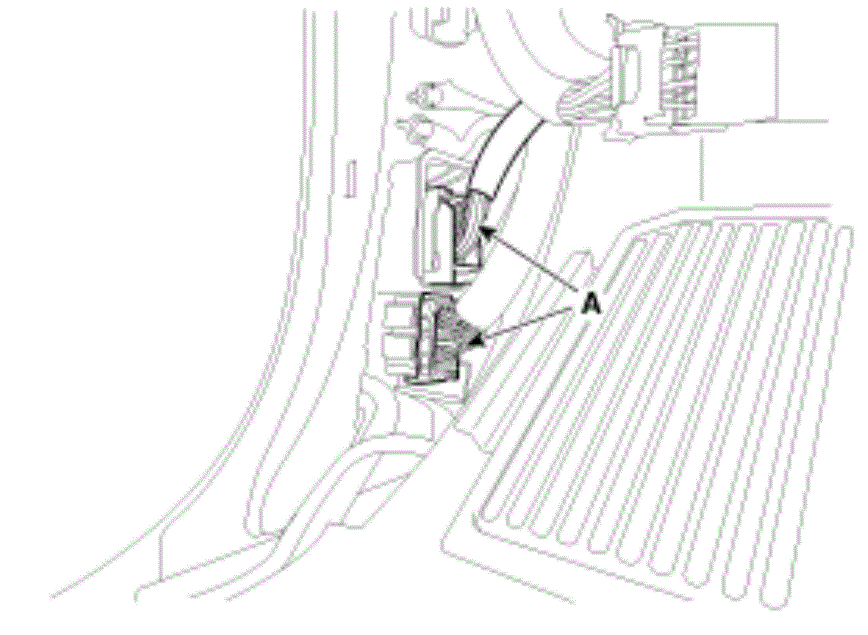

  7. Disconnect the multi box connectors (A).

    [Driver's]

    G13045988Courtesy of KIA MOTORS AMERICA, INC.

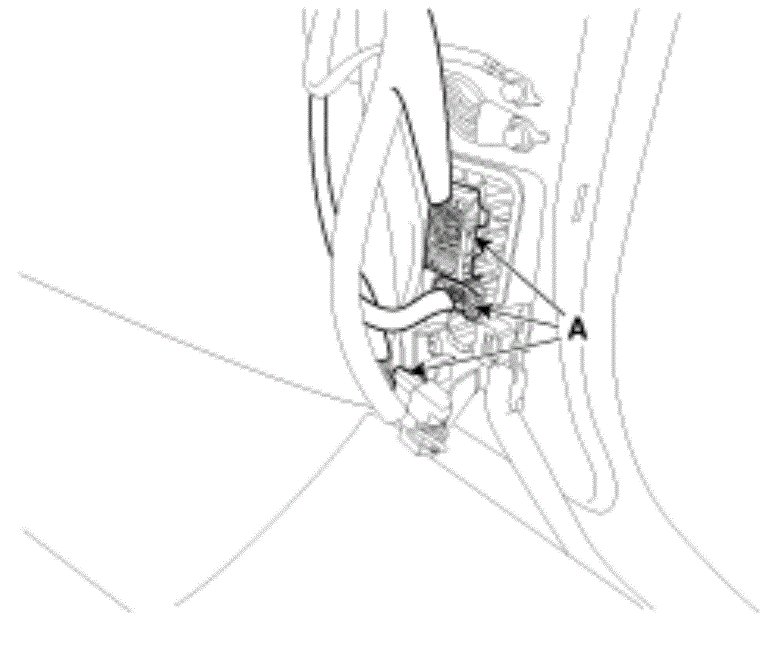

    [Passenger's]

    G13045989Courtesy of KIA MOTORS AMERICA, INC.

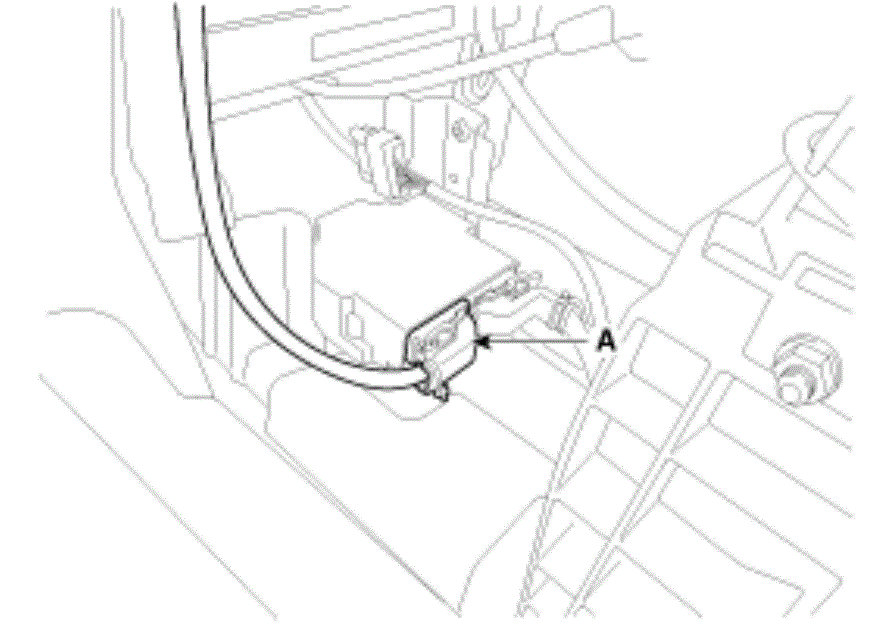

  8. Disconnect the airbag control module (SRSCM) connector (A).
    G13045990Courtesy of KIA MOTORS AMERICA, INC.

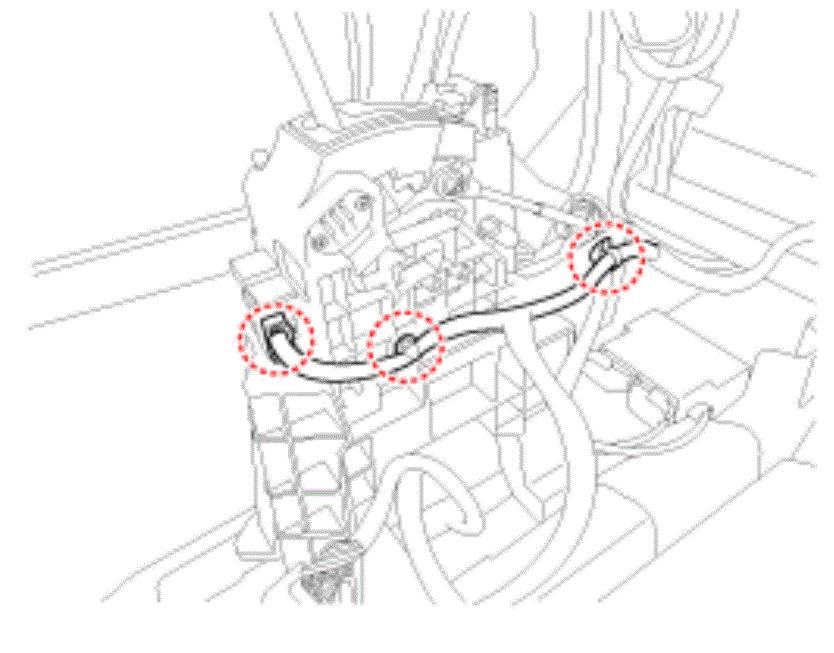

  9. Disconnect the wiring mounted fastener.
    G13045991Courtesy of KIA MOTORS AMERICA, INC.

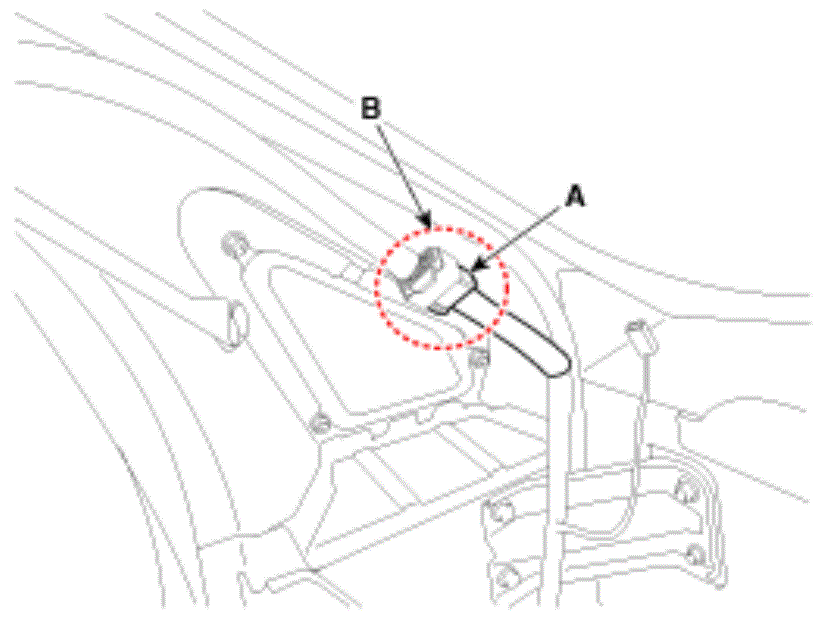

  10. Disconnect the connector (A) and the mounting clips (B) in the front pillar.

    [Driver's]

    G13045992Courtesy of KIA MOTORS AMERICA, INC.

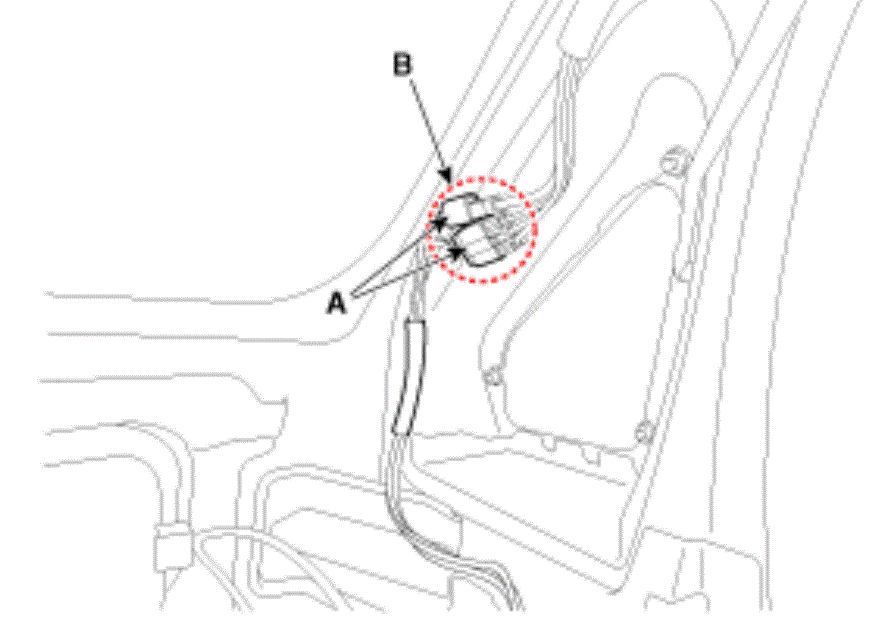

    [Passenger's]

    G13045993Courtesy of KIA MOTORS AMERICA, INC.

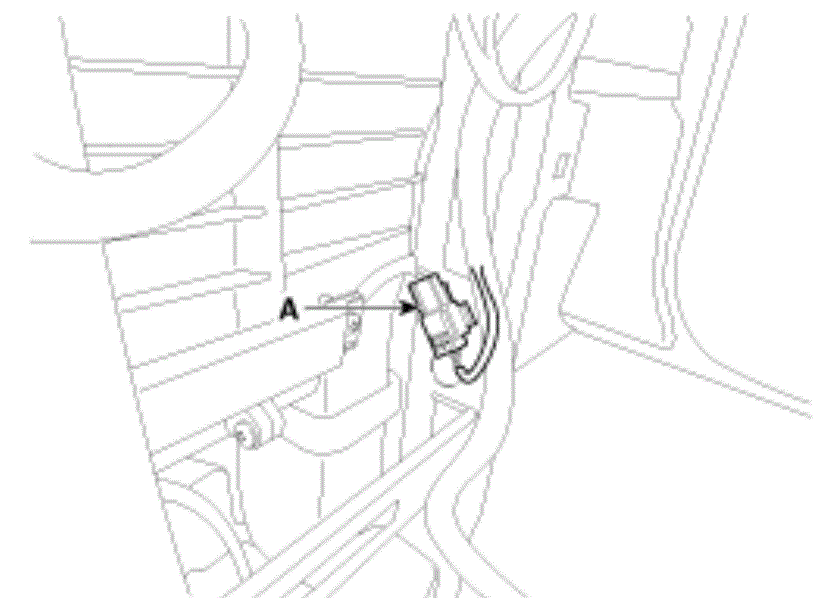

  11. Disconnect the smart key antenna connector (A).
    G13045994Courtesy of KIA MOTORS AMERICA, INC.

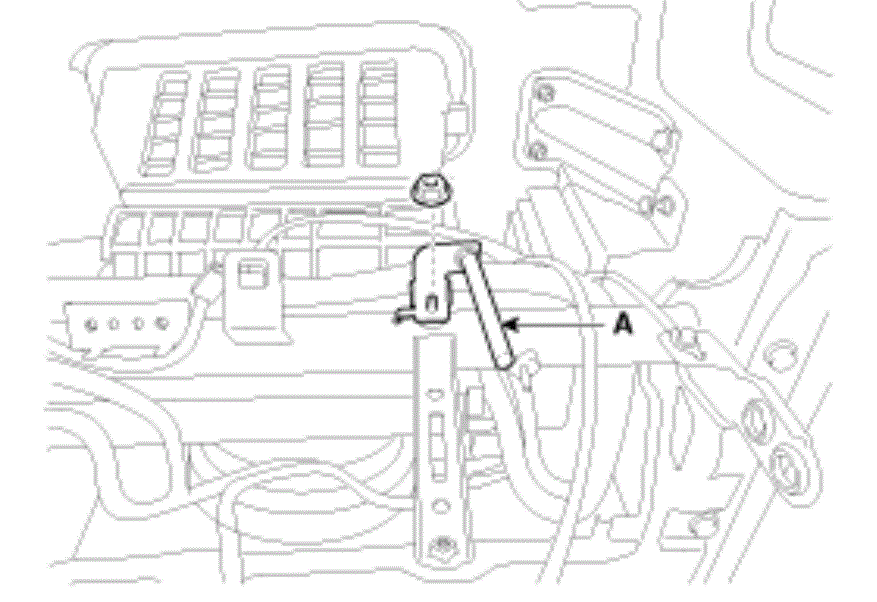

  12. Loosen the nut and remove the antenna (A).
    G13045995Courtesy of KIA MOTORS AMERICA, INC.

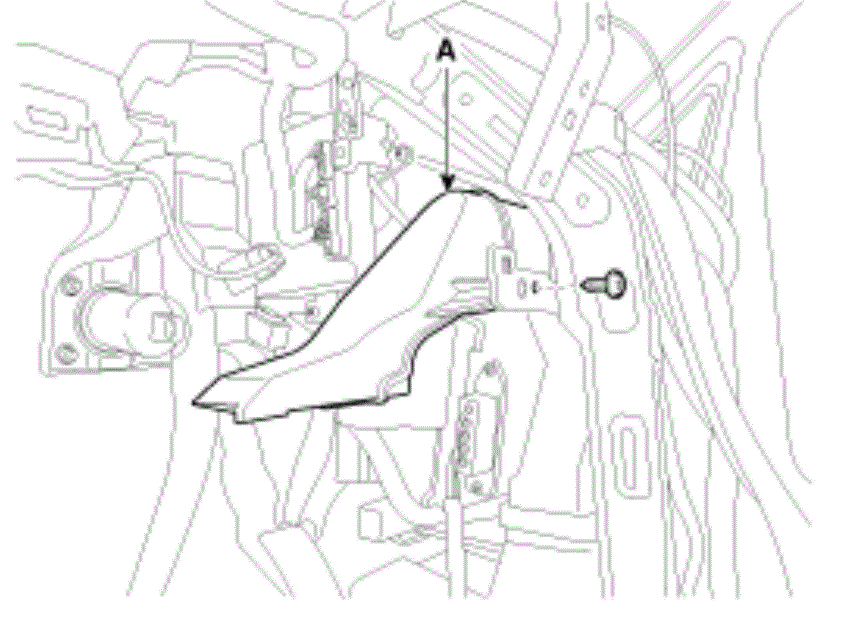

  13. Loosen the screw and remove the air duct (A).
    G13045996Courtesy of KIA MOTORS AMERICA, INC.
  14. Disconnect the heater and blower unit connector.

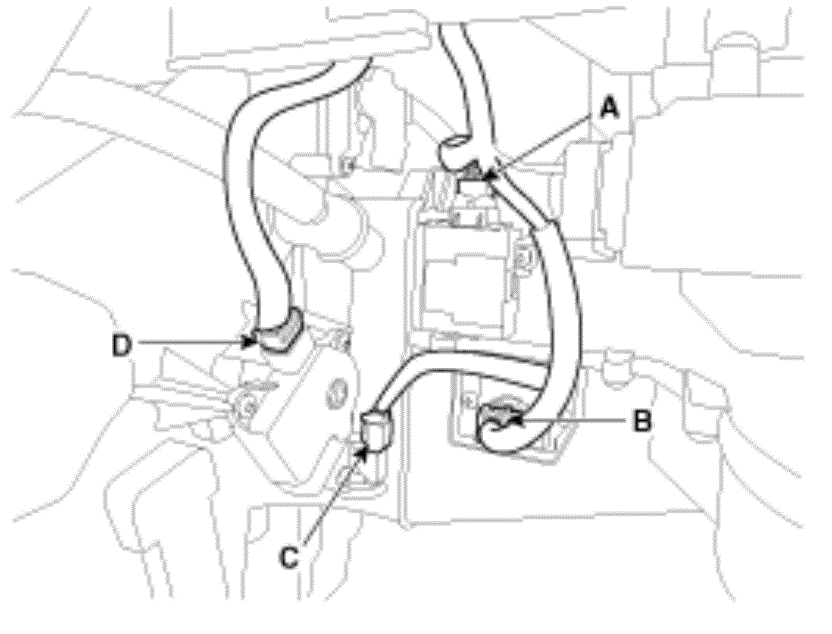

    1. Disconnect the cluster Ionizer (A), FET (B), evaporator temperature sensor (C), and mode adjust actuator (D).
      G13045997Courtesy of KIA MOTORS AMERICA, INC.

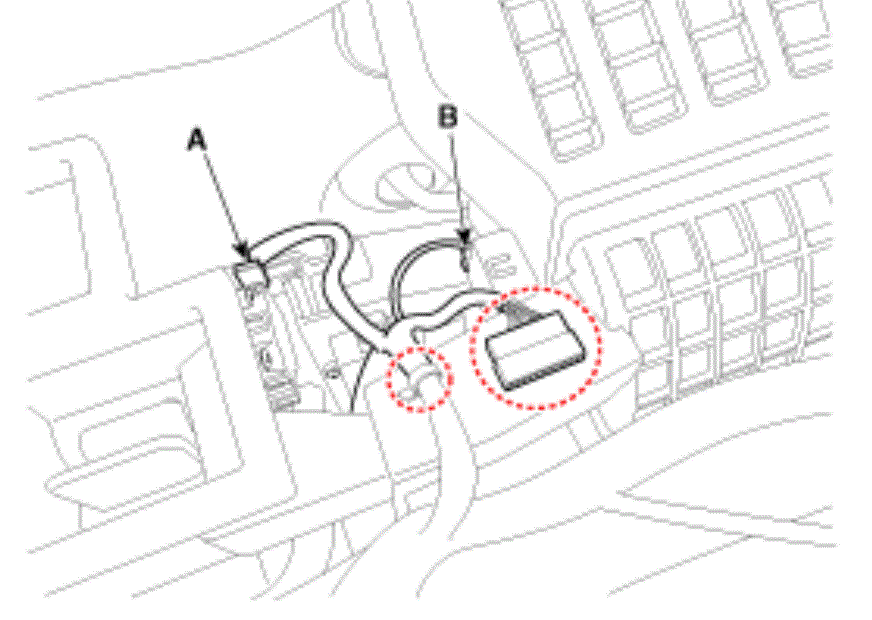

    2. Disconnect the auto defogging actuator connector (A), intake actuator connector (B), and the wiring mounted fastener.
      G13045998Courtesy of KIA MOTORS AMERICA, INC.

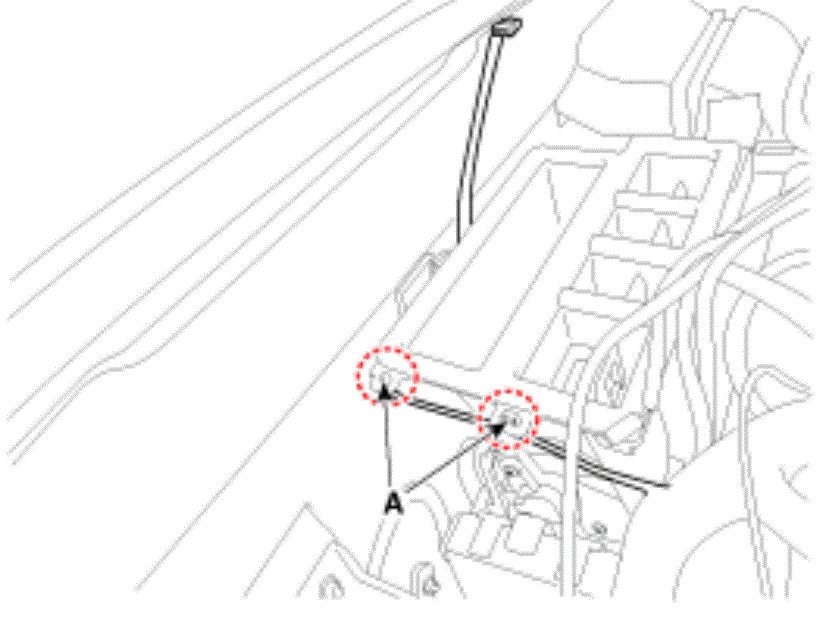

    3. Disconnect the photo sensor wiring fastener (A).
      G13045999Courtesy of KIA MOTORS AMERICA, INC.

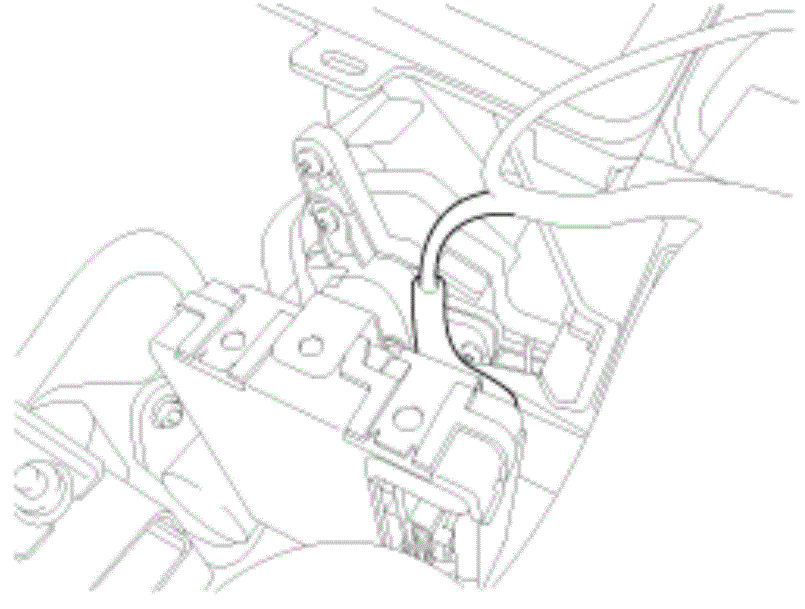

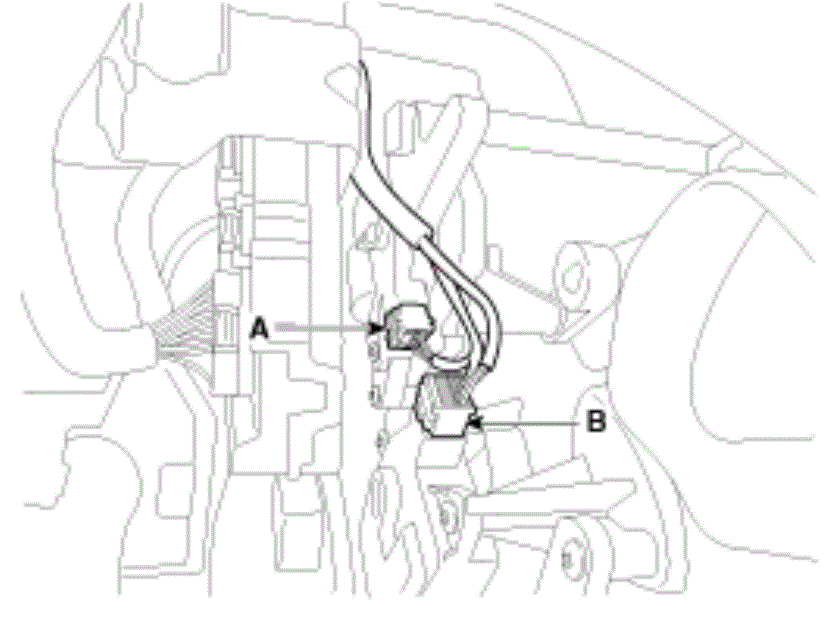

    4. Disconnect the mode control actuator (A), temperature control actuator (B) and then remove the wiring fastener.
      G13046000Courtesy of KIA MOTORS AMERICA, INC.
      G13046001Courtesy of KIA MOTORS AMERICA, INC.

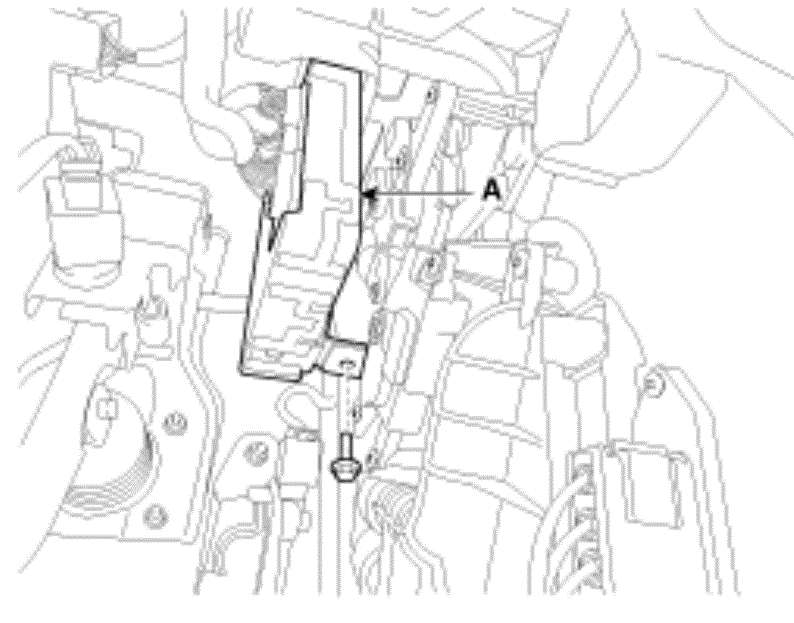

  15. Loosen the bolt and separate the smart key unit (A).
    G13046002Courtesy of KIA MOTORS AMERICA, INC.

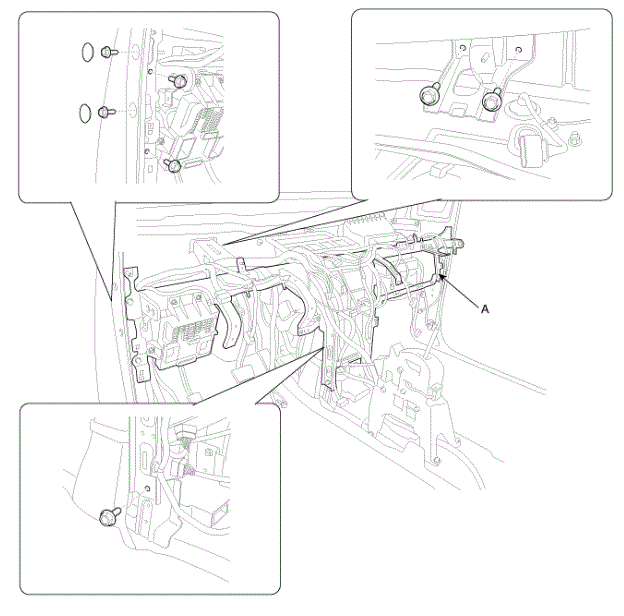

  16. After loosening the mounting bolts and nuts, remove the cowl cross bar assembly (A).

    [LH]

    G13046003Courtesy of KIA MOTORS AMERICA, INC.

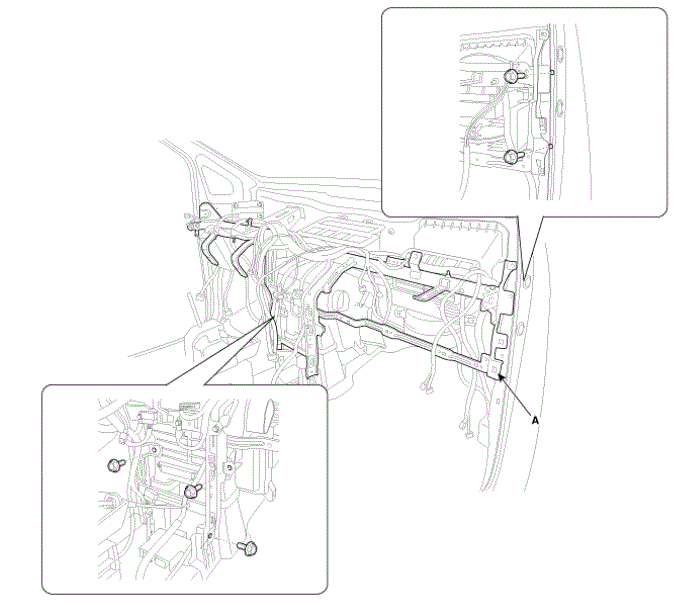

    [RH]

    G13046004Courtesy of KIA MOTORS AMERICA, INC.

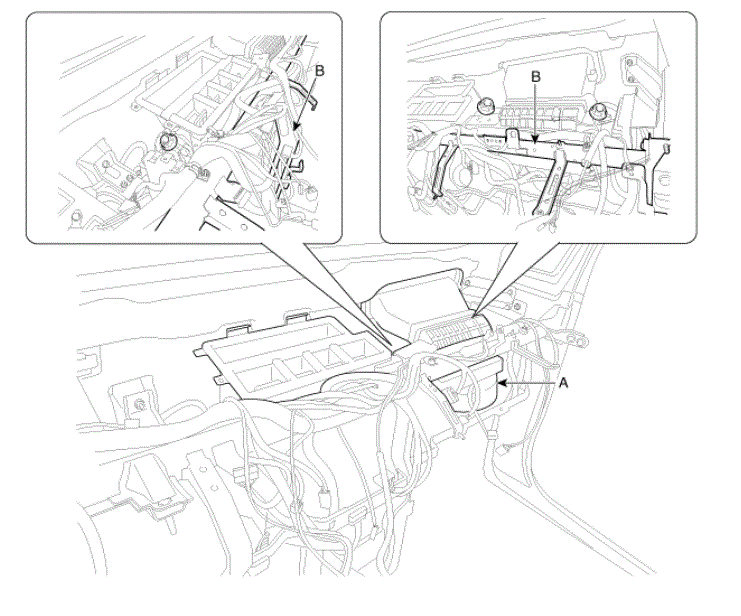

  17. Loosen the nuts and remove the cowl cross bar assembly (B) from air conditioning unit (A).
    G13046005Courtesy of KIA MOTORS AMERICA, INC.
  18. Install in the reverse order of removal.

    Information

    • Make sure that the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure that the crash pad wire harnesses are not pinched.
    • Make sure that the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, and then enter the customer's radio station presets.
